GS8162Z18BGB-200 Gsi

GS8162Z18BGB-200 - GSI の商品詳細ページです。

1

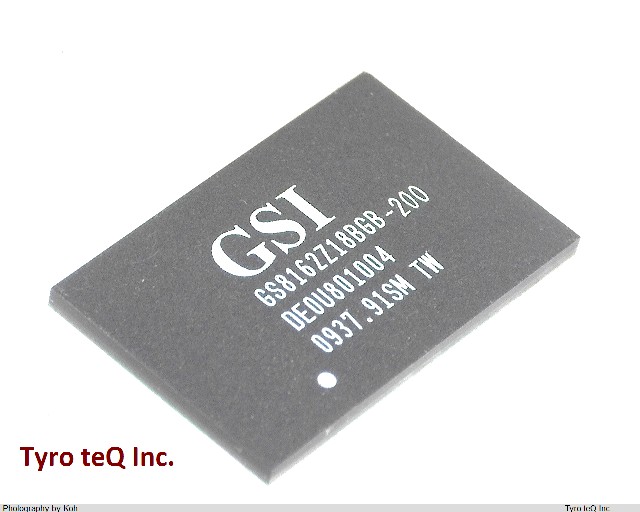

GS8162Z18BGB-200
  • GS8162Z18BGB-200
  • GS8162Z18BGB-200
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

GS8162Z18BGB-200 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番GS8162Z18BGB-200
メーカーGSI
Access Time-Max 6.5 ns
Additional Feature FLOW-THROUGH OR PIPELINED ARCHITECTURE; ALSO OPERATES AT 3.3V SUPPLY
JESD-30 Code R-PBGA-B119
JESD-609 Code e1
Length 22 mm
Memory Density 18874368 bit
Memory IC Type ZBT SRAM
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 119
Number of Words 1048576 words
Number of Words Code 1M
Operating Mode SYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Organization 1MX18
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Shape RECTANGULAR
Package Style GRID ARRAY Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.99 mm
Supply Voltage-Max (Vsup) 2 V
Supply Voltage-Min (Vsup) 1.7 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Width 14 mm
会社名称GSI Technology designs
設立1995
所在地1213 Elko Drive Sunnyvale, CA 94089 USA
URLhttp://www.gsitechnology.com/

GS8162Z18BGB-200のレビュー

GS8162Z18BGB-200 のご注文について
