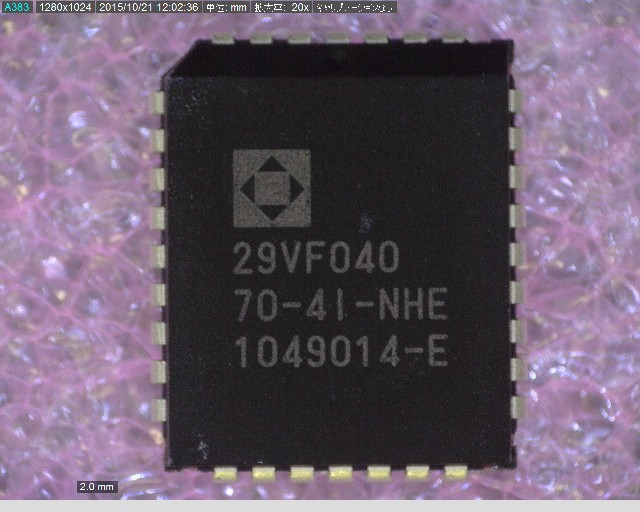

GLS29VF040-70-4I-NHE
1
-
- 個
２営業日以内に回答いたします
GLS29VF040-70-4I-NHE の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | GLS29VF040-70-4I-NHE |
|---|---|
| メーカー | GREENLIANT |
| Access Time-Max | 70 ns |
| Data Polling | YES |
| JESD-30 Code | R-PQCC-J32 |
| JESD-609 Code | e3 |
| Memory Density | 4194304 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Sectors/Size | 4K |
| Number of Terminals | 32 |
| Number of Words | 524288 words |
| Number of Words Code | 512K |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 512KX8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 3/3.3 V |
| Qualification Status | Not Qualified |
| Sector Size | 128 Words |
| Standby Current-Max | 3.0E-5 Amp |
| Sub Category | Flash Memories |
| Supply Current-Max | 0.03 mA |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Toggle Bit | YES |
| Type | NOR TYPE |
| 会社名称 | Greenliant Systems, Ltd. |
|---|---|
| 設立 | 1991 |
| 所在地 | 3970 Freedom Circle, Suite 100 Santa Clara, CA 95054,USA |
| URL | http://www.greenliant.com/ |
