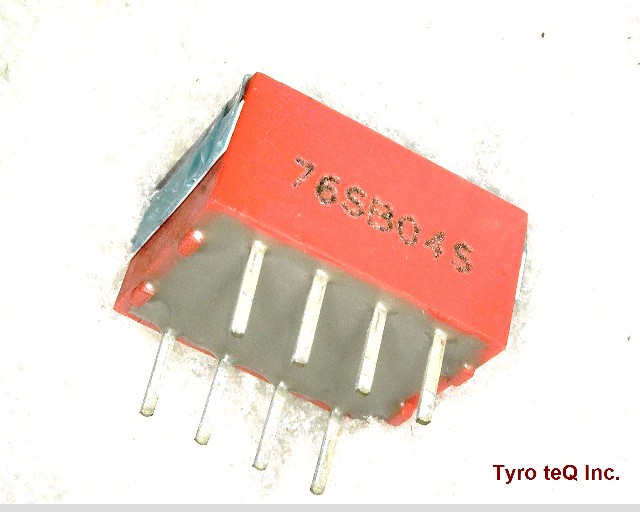

76SB04S
データシート
1
No Image
-
- 個
２営業日以内に回答いたします
76SB04S の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 76SB04S |
|---|---|
| メーカー | GRAYHILL |
| データシート |  |
| Actuator Angle | 0 |
| Actuator Type | ROCKER |
| Body Breadth | 9.65 inch |
| Body Color | RED |
| Body Height | 6.93 mm |
| Body Length or Diameter | 12.2 mm |
| Center Contact Material | BRASS |
| Center Contact Plating | GOLD OVER NICKEL |
| Contact Current(DC)-Max | 0.15 A |
| Contact DC Max Rating R Load | .15A@30VDC |
| Contact Resistance | 0.1 mohm |
| Contact Timing | MAKE-BEFORE-BREAK |
| Contact Voltage(DC)-Max | 30 V |
| Dielectric Withstand Volts | 500VAC |
| Electrical Life | 2000 Cycle(s) |
| End Contact Material | COPPER ALLOY |
| End Contact Plating | GOLD OVER NICKEL |
| Housing Material | THERMOPLASTIC |
| Insulation Resistance | 1000 ohm |
| JESD-609 Code | e0 |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Number of Positions | 4 |
| Number of Switch Sections | 4 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Packing Method | TUBE |
| Sealing | TOP TAPE SEALED |
| Switch Action | LATCHED |
| Switch Function | SPST |
| Switch Type | SLIDE DIP SWITCH |
| Terminal Finish | MATTE TIN OVER NICKEL |
| Terminal Length | 0.156 inch |
| Terminal Material | COPPER ALLOY |
| Termination Type | SOLDER |
