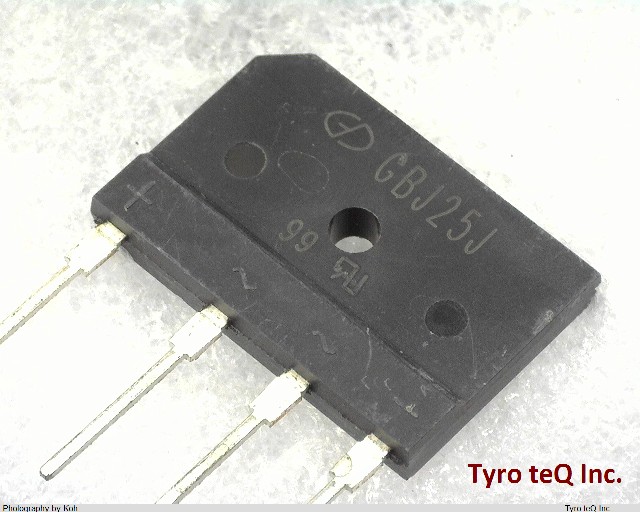

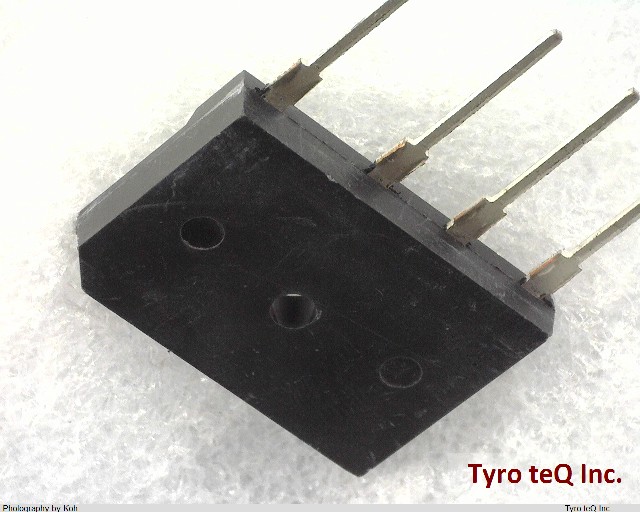

GBJ25J

Name: GBJ25J
Brand: GOODARK
SKU: 170176165-0000-0000-0000

GBJ25J - GOODARK の商品詳細ページです。

２営業日以内に回答いたします

GBJ25J の詳細情報

型番	GBJ25J
メーカー	GOODARK
Additional Feature	HIGH RELIABILITY
Breakdown Voltage-Min	600 V
Case Connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode Element Material	SILICON
Diode Type	BRIDGE RECTIFIER DIODE
Forward Voltage-Max (VF)	0.92 V
JESD-30 Code	R-PSFM-T4
JESD-609 Code	e0
Moisture Sensitivity Level	2
Non-rep Pk Forward Current-Max	250 A
Number of Elements	4
Number of Phases	1
Number of Terminals	4
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Output Current-Max	3.5 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Reference Standard	UL RECOGNIZED
Rep Pk Reverse Voltage-Max	600 V
Reverse Current-Max	5 uA
Reverse Recovery Time-Max	3 us
Reverse Test Voltage	600 V
Sub Category	Bridge Rectifier Diodes
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	40
