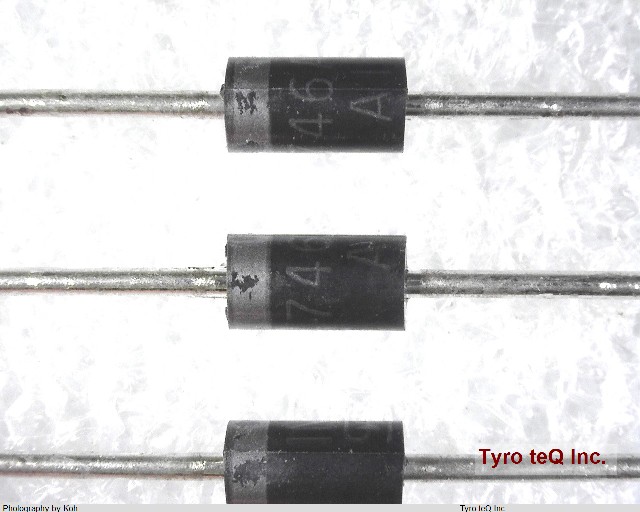

1N4746A
データシート
1
14時間19分後
以内に見積もり依頼を頂ければ、
05月14日(火) 9:00
までに見積もり回答いたします。
- 個
1N4746A の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 1N4746A |
|---|---|
| メーカー | GOLDSTAR |
| データシート |  |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | ZENER DIODE |
| Dynamic Impedance-Max | 20 ohm |
| Forward Voltage-Max (VF) | 1.2 V |
| JEDEC-95 Code | DO-41 |
| JESD-30 Code | O-GALF-W2 |
| JESD-609 Code | e0 |
| Knee Impedance-Max | 700 ohm |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 20 Cel |
| Operating Temperature-Min | -65 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Shape | ROUND |
| Package Style | LONG FORM Meter |
| Peak Reflow Temperature (Cel) | 240 |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 1 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Reference Voltage-Nom | 18 V |
| Reverse Current-Max | 0.005 uA |
| Reverse Test Voltage | 13.7 V |
| Sub Category | Voltage Reference Diodes |
| Surface Mount | NO |
| Technology | ZENER |
| Terminal Finish | BRIGHT TIN |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 5 |
| Voltage Temp Coeff-Max | 14.4 mV/Cel |
| Voltage Tol-Max | 1 % |
| Working Test Current | 14 mA |
| 設立 | 1958 |
|---|---|
| URL | http://www.lg.com/us |
