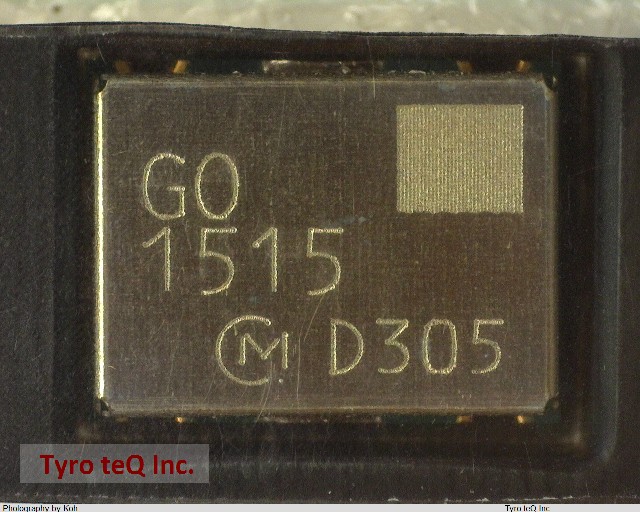

GO1515-CTA

Name: GO1515-CTA
Brand: GENNUM
SKU: 170084936-0000-0000-0000

GO1515-CTA - GENNUM の商品詳細ページです。

２営業日以内に回答いたします

GO1515-CTA の詳細情報

型番	GO1515-CTA
メーカー	GENNUM
Additional Feature	TAPA AND REEL
Control Voltage-Max	4.65 V
Control Voltage-Min	3.1 V
Manufacturer Series	GO1515-CTA
Modulation Sensitivity	16 MHz/V
Mounting Feature	SURFACE MOUNT
Number of Terminals	8
Offset Frequency	25 kHz
Operating Frequency-Max	1485 MHz
Operating Frequency-Min	1483 MHz
Operating Frequency-Nom	1485 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Oscillator Type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	1 dBm
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	LCC8,.23X.33,100
Phase Noise	74 dBc/Hz
Physical Dimension	7.8mm x 6.0mm x 2.0mm
Power Supplies	5 V
Qualification Status	Not Qualified
Sub Category	Other Oscillators
Supply Current-Max	15 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V

会社名称	Gennum Corporation
所在地	200 Flynn Road Camarillo, California 93012
URL	http://www.semtech.com/gennum-acquisition.html
