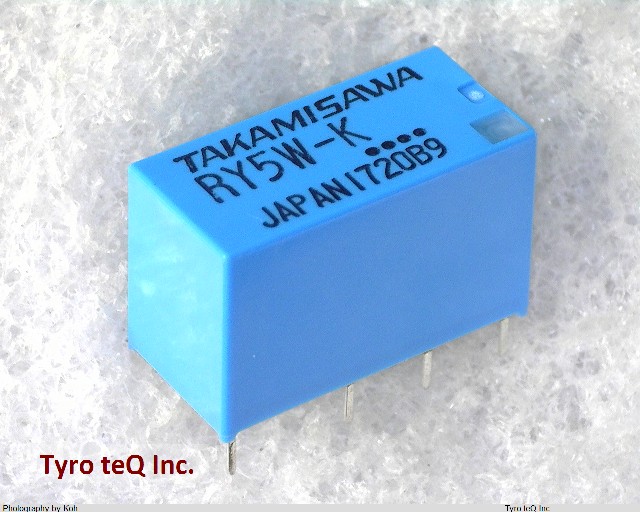

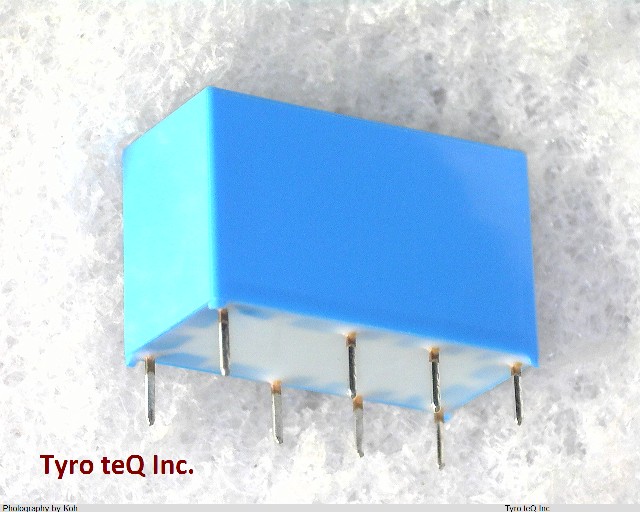

RY5W-K データシート

Name: RY5W-K
Brand: FUJITSU
SKU: 280181026-0000-0000-0000

RY5W-K - FUJITSU の商品詳細ページです。

209時間51分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

RY5W-K の詳細情報

型番	RY5W-K
メーカー	FUJITSU
データシート
Body Breadth	9.8 inch
Body Height	12.5 mm
Body Length or Diameter	20.2 mm
Coil Current(DC)-Max	0.03 A
Coil Operate Voltage(DC)	3.6 V
Coil Power	150 mW
Coil Release Voltage(DC)	0.25 V
Coil Resistance	165 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	60VA@120VAC
Contact AC Max Rating R Load	1A@120VAC
Contact Current(AC)-Max	1 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	24W@60VDC
Contact DC Max Rating R Load	1A@60VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	120 V
Contact Voltage(DC)-Max	60 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	500 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Silver Palladium
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e1
Manufacturer Series	RY
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	6 ms
Operating Temperature-Max	90 Cel
Operating Temperature-Min	-30 Cel
PCB Hole Count	8
Physical Dimension	20.2mm X 9.8mm X 12.5mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Sealing	PLASTIC SEALED
Terminal Finish	TIN SILVER COPPER
Terminal Length	0.0033 inch
Termination Type	SOLDER
Weight	5 g
