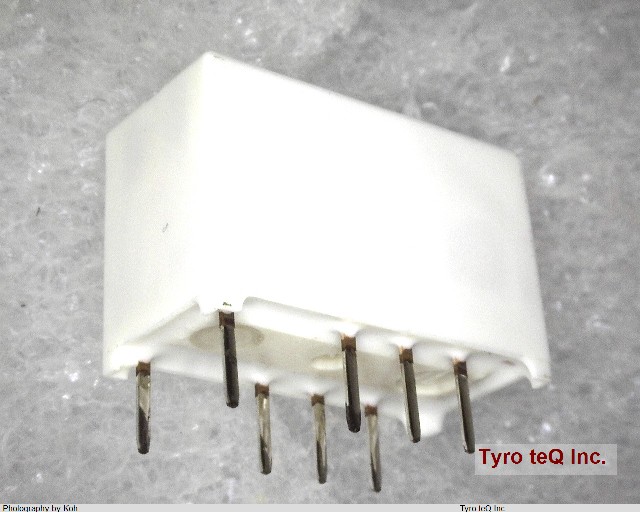

NA24W-K データシート

Name: NA24W-K
Brand: FUJITSU
SKU: 240122285-0000-0000-0000

NA24W-K - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

NA24W-K の詳細情報

型番	NA24W-K
メーカー	FUJITSU
データシート
Body Breadth	7.4 inch
Body Height	9.7 mm
Body Length or Diameter	14.9 mm
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	18 V
Coil Power	200 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@250VAC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	30W@220VDC
Contact DC Max Rating R Load	2A@220VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Gold
End Contact Plating	SILVER ALLOY
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e1
Manufacturer Series	NA
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	6 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8
Physical Dimension	14.9mm X 7.4mm X 9.7mm
Reference Standard	CSA; IEC; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	4 ms
Sealing	PLASTIC SEALED
Terminal Finish	TIN SILVER COPPER
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	1.5 g
