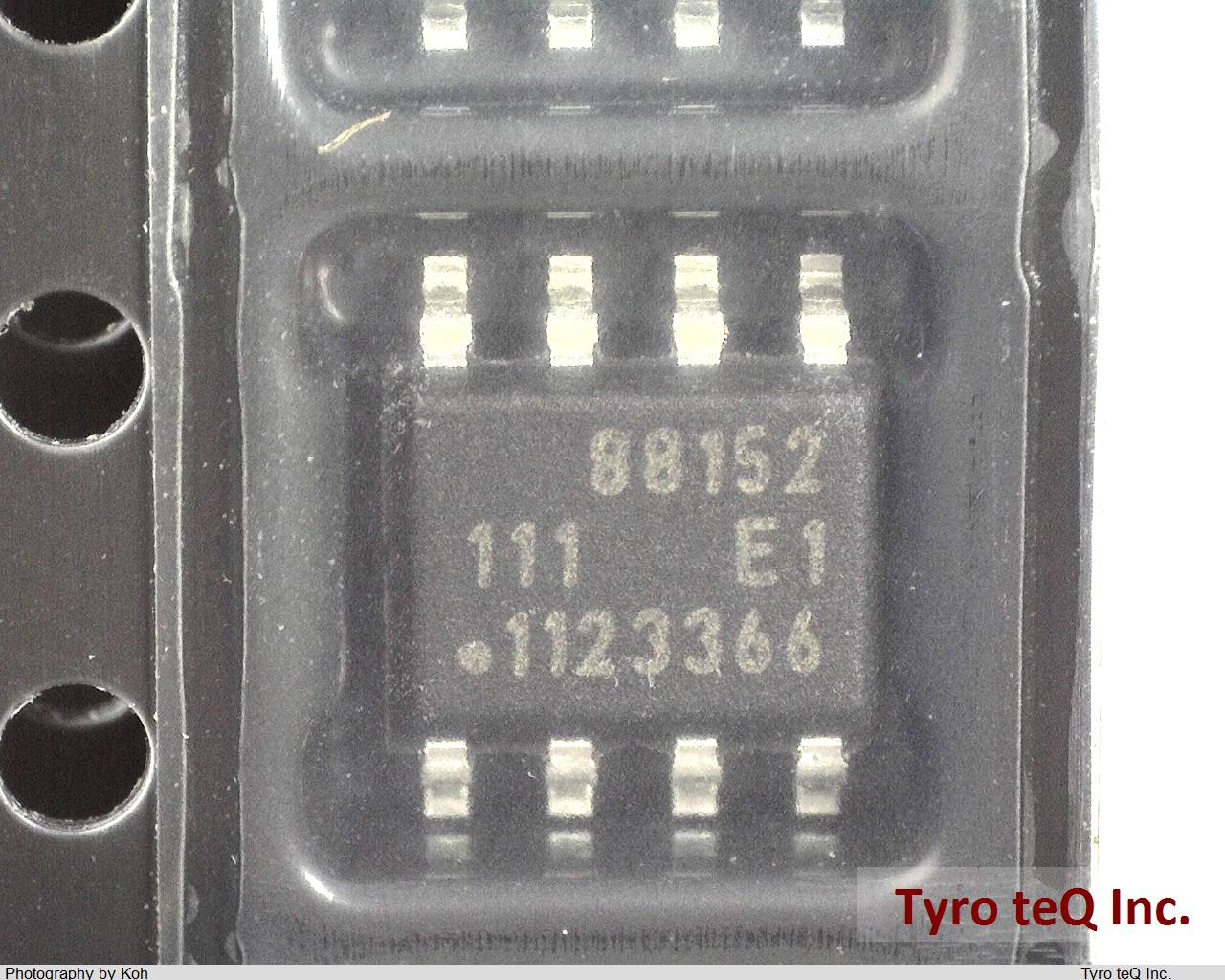

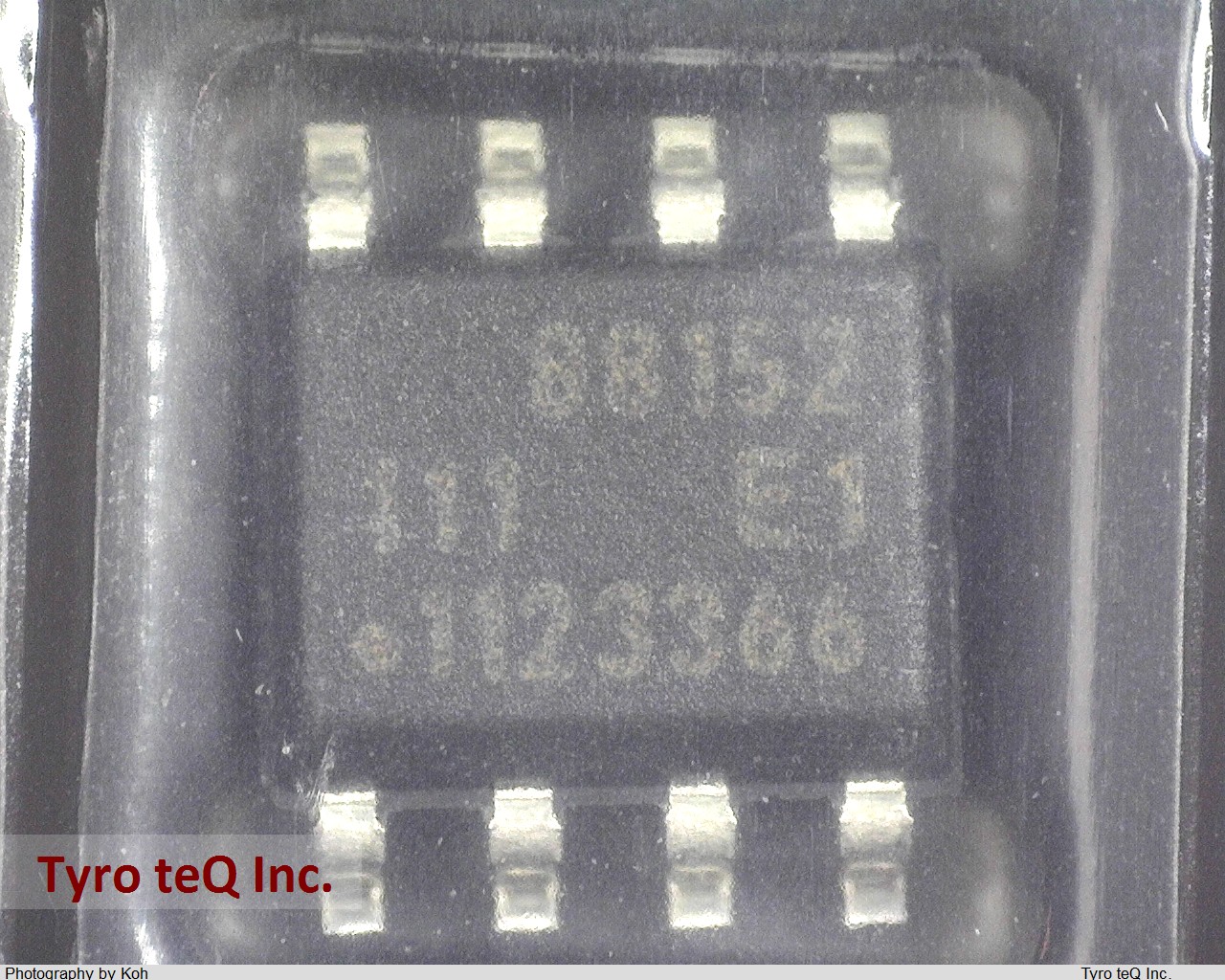

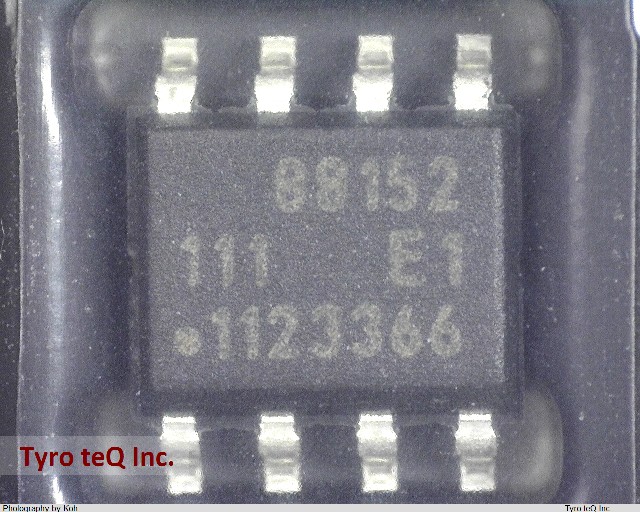

MB88152PNF-G-111-JN-EFE1 データシート

Name: MB88152PNF-G-111-JN-EFE1
Brand: FUJITSU
SKU: 230760848-0000-0000-0000

MB88152PNF-G-111-JN-EFE1 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB88152PNF-G-111-JN-EFE1 の詳細情報

型番	MB88152PNF-G-111-JN-EFE1
メーカー	FUJITSU
データシート
JESD-30 Code	R-PDSO-G8
Length	5.05 mm
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Clock Frequency-Max	67 MHz
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3 V
Primary Clock/Crystal Frequency-Nom	67 MHz
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Clock Generators
Supply Current-Max	7 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	3.9 mm
uPs/uCs/Peripheral ICs Type	CLOCK GENERATOR, OTHER
