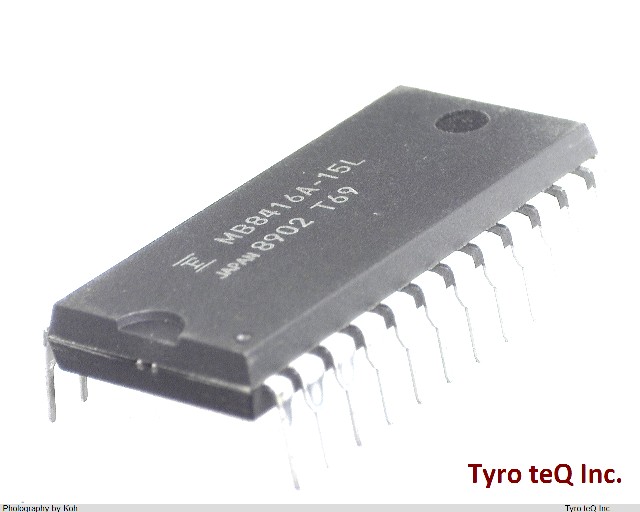

MB8416A-15L データシート

Name: MB8416A-15L
Brand: FUJITSU
SKU: 230004115-0000-0000-0000

MB8416A-15L - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB8416A-15L の詳細情報

型番	MB8416A-15L
メーカー	FUJITSU
データシート
Access Time-Max	150 ns
Additional Feature	IT ALSO HAVE PACKAGE CERAMIC DIP
I/O Type	COMMON
JESD-30 Code	R-GDIP-T24
JESD-609 Code	e0
Length	30.07 mm
Memory Density	16384 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Number of Functions	1
Number of Ports	1
Number of Terminals	24
Number of Words	2048 words
Number of Words Code	2K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	2KX8
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.96 mm
Standby Current-Max	3.0E-5 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.06 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
