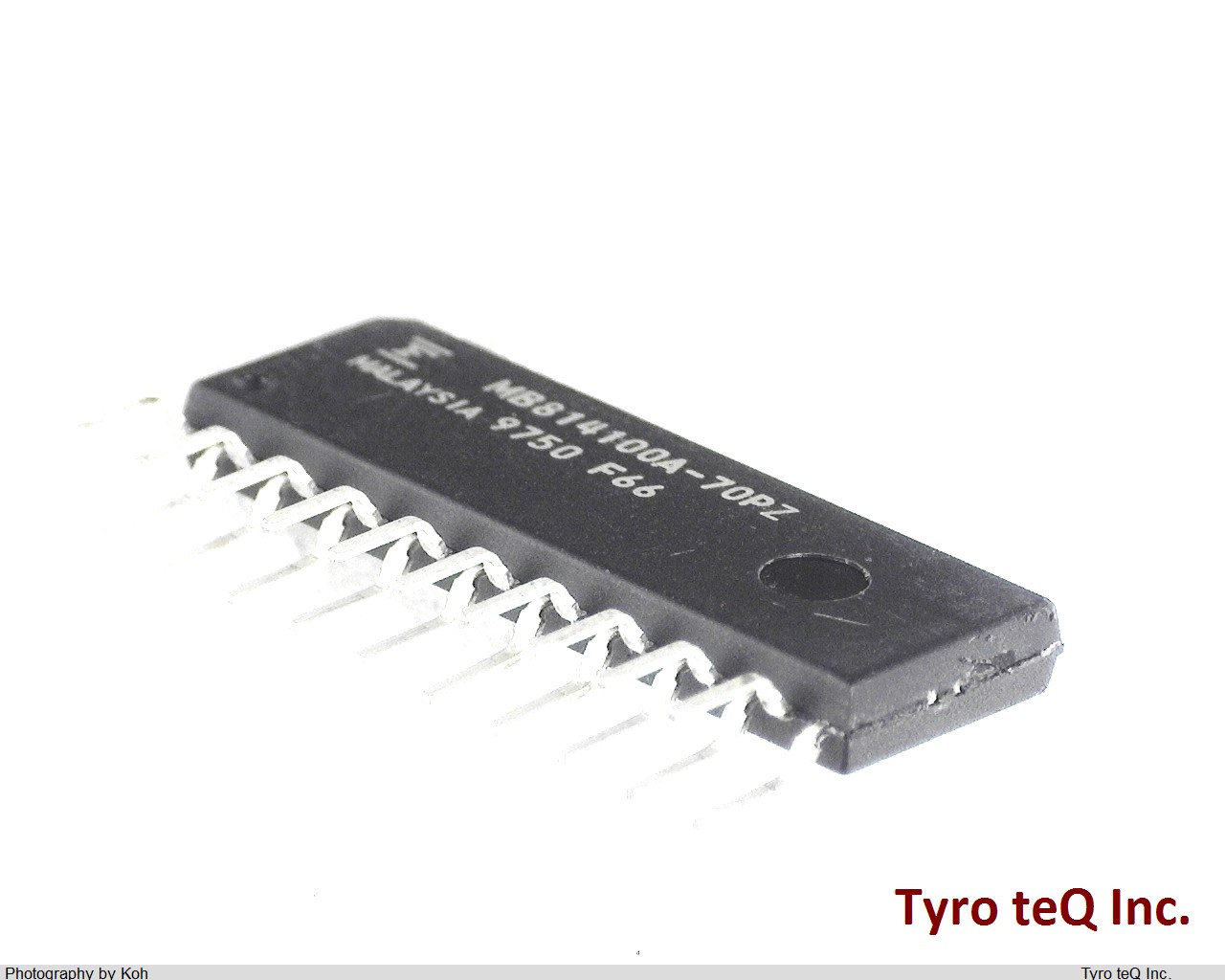

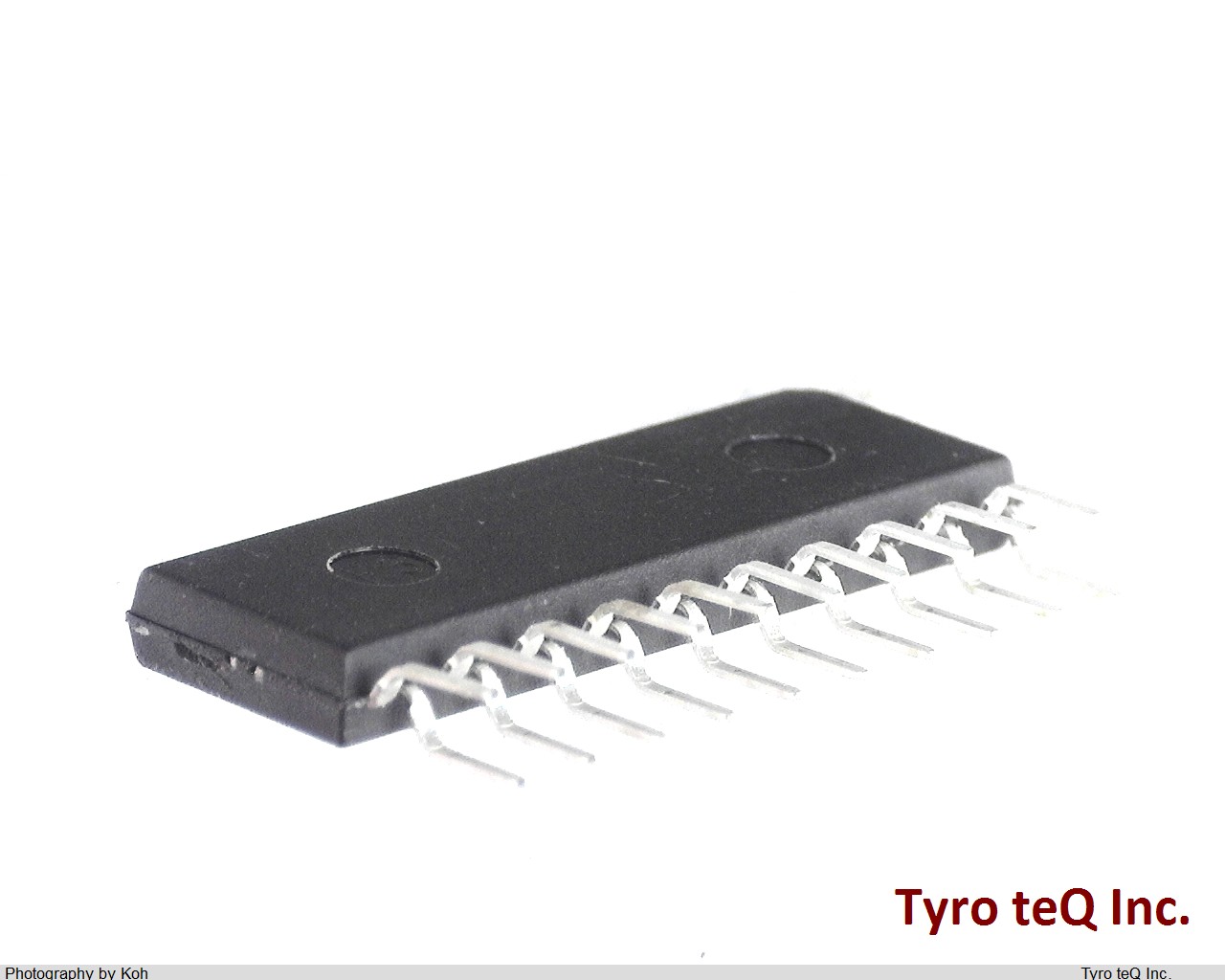

MB814100A-70PZ データシート

Name: MB814100A-70PZ
Brand: FUJITSU
SKU: 230732600-0000-0000-0000

MB814100A-70PZ - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB814100A-70PZ の詳細情報

型番	MB814100A-70PZ
メーカー	FUJITSU
データシート
Access Mode	FAST PAGE
Access Time-Max	70 ns
Additional Feature	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O Type	SEPARATE
JESD-30 Code	R-PZIP-T20
JESD-609 Code	e0
Length	25.88 mm
Memory Density	4194304 bit
Memory IC Type	FAST PAGE DRAM
Memory Width	1
Number of Functions	1
Number of Ports	1
Number of Terminals	20
Number of Words	4194304 words
Number of Words Code	4M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4MX1
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP20,.1
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Refresh Cycles	1024
Seated Height-Max	10.16 mm
Self Refresh	NO
Standby Current-Max	0.001 Amp
Sub Category	DRAMs
Supply Current-Max	0.1 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	ZIG-ZAG
Width	2.85 mm
