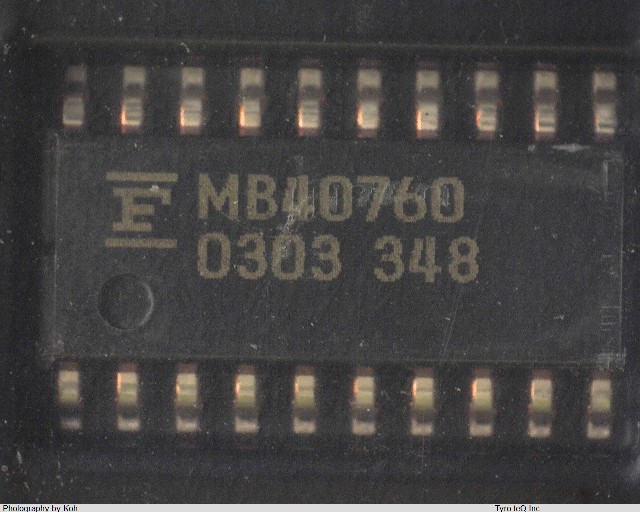

MB40760PF データシート

Name: MB40760PF
Brand: FUJITSU
SKU: 230012258-0000-0000-0000

MB40760PF - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB40760PF の詳細情報

型番	MB40760PF
メーカー	FUJITSU
データシート
Analog Output Voltage-Max	5 V
Analog Output Voltage-Min	0 V
Converter Type	D/A CONVERTER
Input Bit Code	BINARY
Input Format	PARALLEL, WORD
JESD-30 Code	R-PDSO-G20
Length	12.7 mm
Linearity Error-Max (EL)	0.1 %
Number of Bits	10
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	2.25 mm
Settling Time-Nom (tstl)	0.0175 us
Sub Category	Other Converters
Supply Current-Max	62 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
