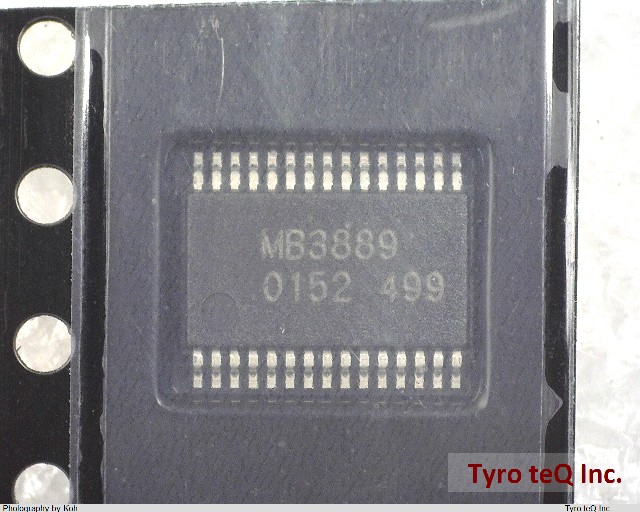

MB3889 データシート

Name: MB3889
Brand: FUJITSU
SKU: 230041548-0000-0000-0000

MB3889 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB3889 の詳細情報

型番	MB3889
メーカー	FUJITSU
データシート
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	18 V
Input Voltage-Min	5.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G30
Length	7.8 mm
Number of Functions	1
Number of Terminals	30
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	0.8 A
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP30,.25,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	PHASE-SHIFT
Switching Frequency-Max	500 kHz
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
