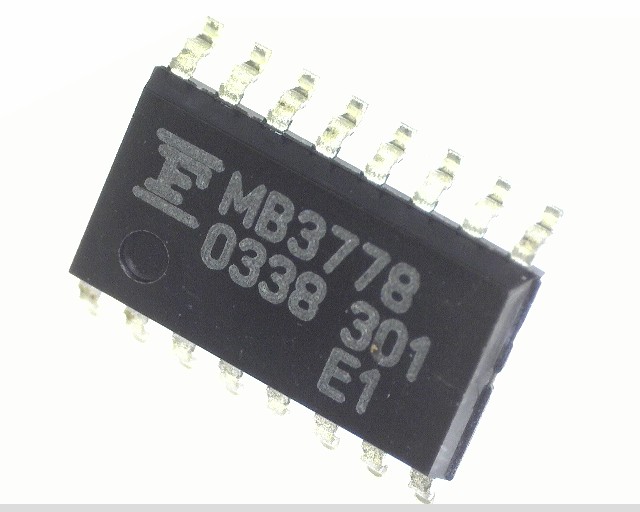

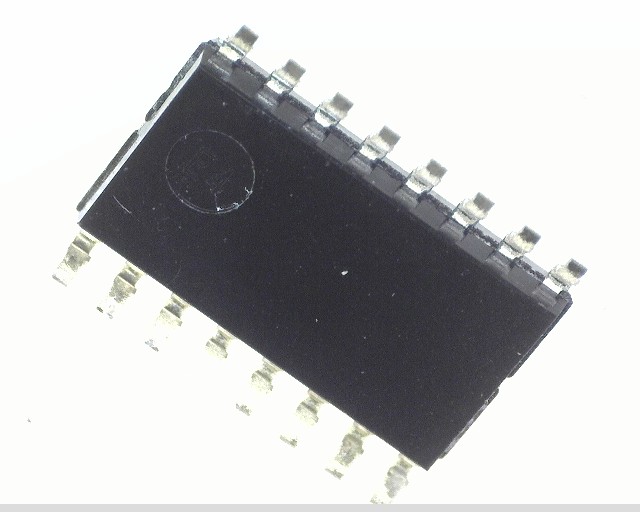

MB3778PF データシート

Name: MB3778PF
Brand: FUJITSU
SKU: 230041360-0000-0000-0000

MB3778PF - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB3778PF の詳細情報

型番	MB3778PF
メーカー	FUJITSU
データシート
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	18 V
Input Voltage-Min	3.6 V
Input Voltage-Nom	6 V
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	0.075 A
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	2.4 mA
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	500 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
