MB3773PF-G-BND-JN-ERE1 データシート

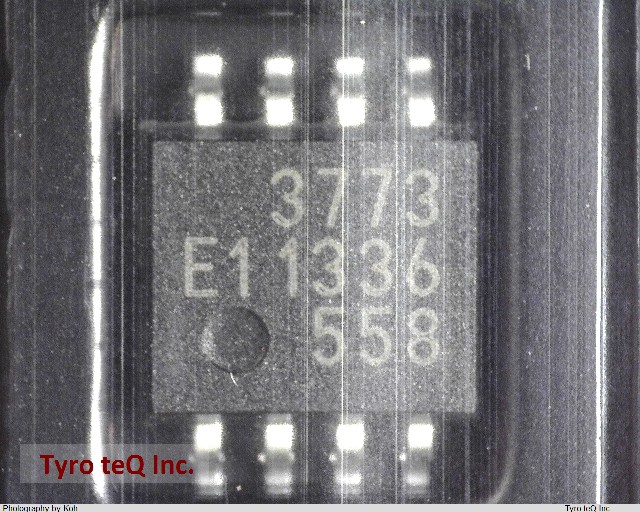

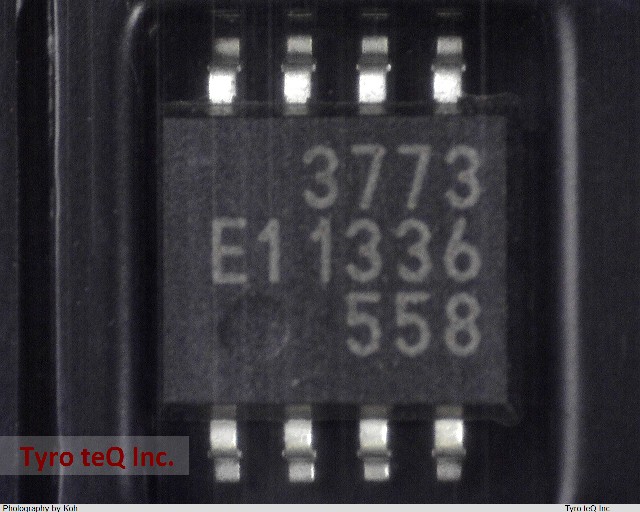

Name: MB3773PF-G-BND-JN-ERE1
Brand: FUJITSU
SKU: 230041315-0000-0000-0000

MB3773PF-G-BND-JN-ERE1 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB3773PF-G-BND-JN-ERE1 の詳細情報

型番	MB3773PF-G-BND-JN-ERE1
メーカー	FUJITSU
データシート
Additional Feature	DETECTION THRESHOLD VOLTAGE IS 4.2V; POWER-ON RESET
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY MANAGEMENT CIRCUIT
JESD-30 Code	R-PDSO-G8
Length	6.35 mm
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	2.25 mm
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	3.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Threshold Voltage-Nom	+4.2V V
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
