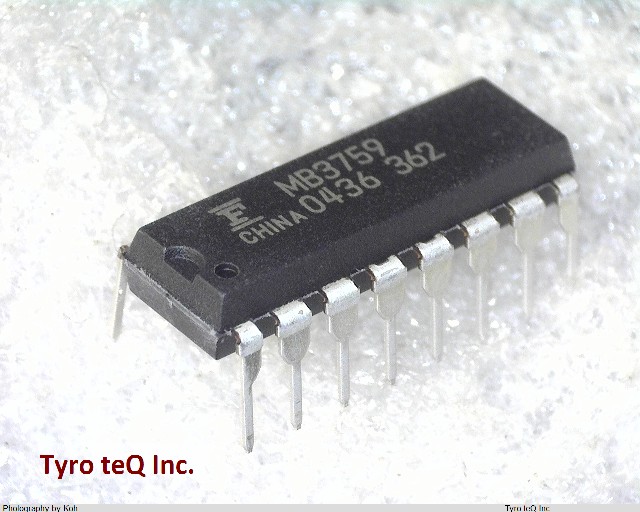

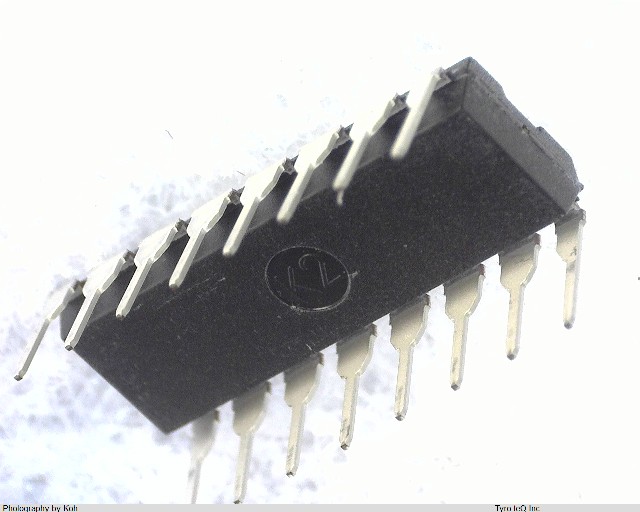

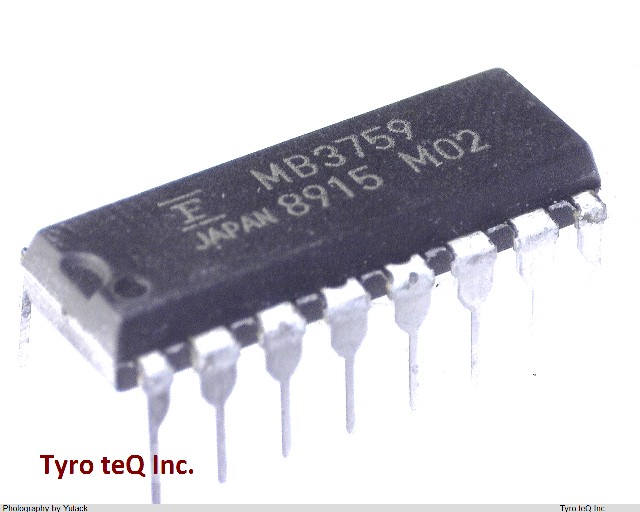

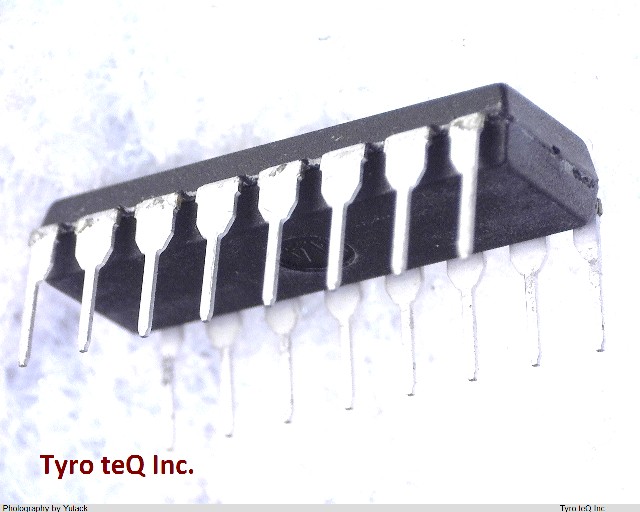

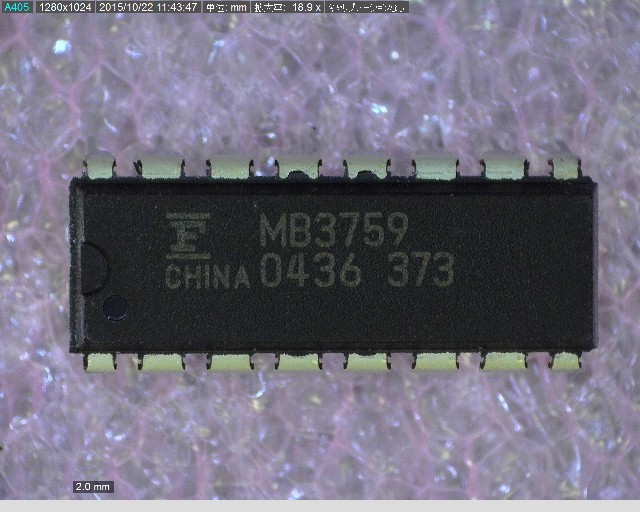

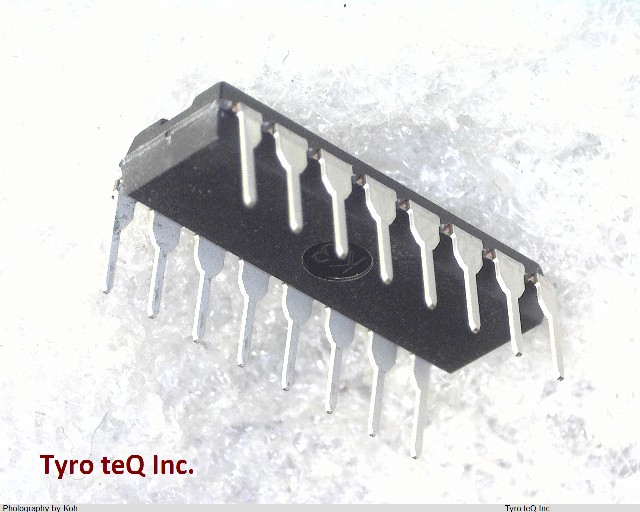

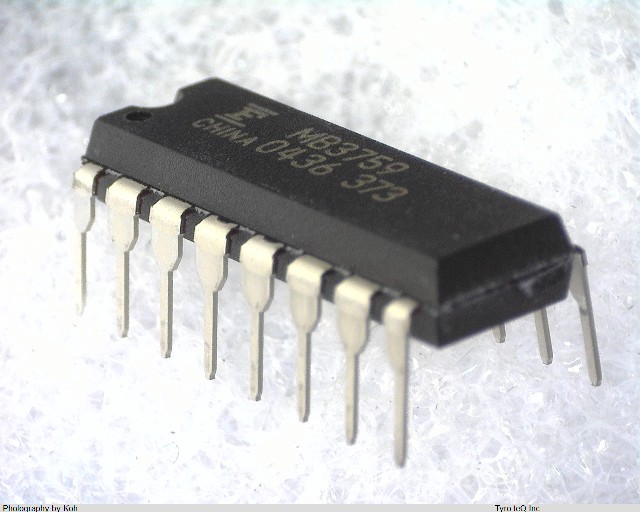

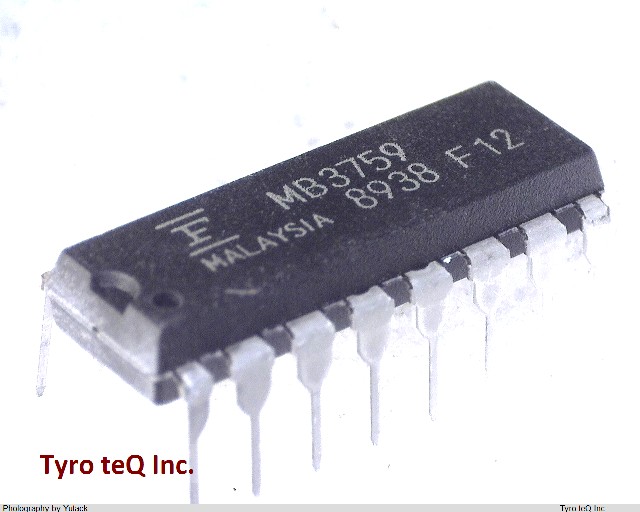

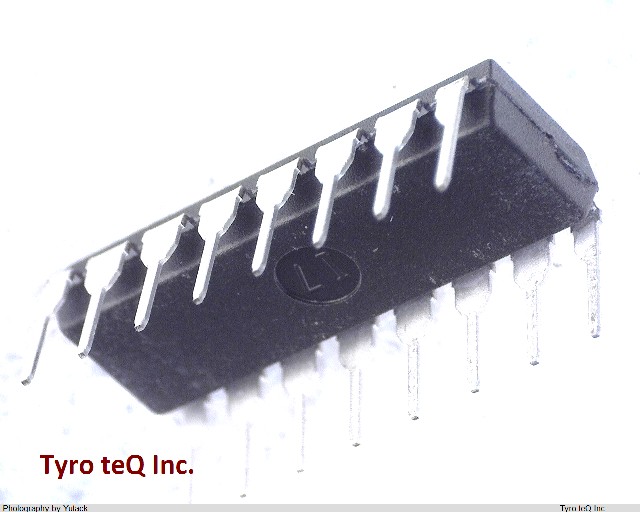

MB3759P データシート

Name: MB3759P
Brand: FUJITSU
SKU: 230000974-0000-0000-0000

MB3759P - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

MB3759P の詳細情報

型番	MB3759P
メーカー	FUJITSU
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	15 V
Input Voltage-Min	7 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	10.15 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	0.2 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	2.25 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	12 mA
Surface Mount	NO
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	300 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	5.3 mm
