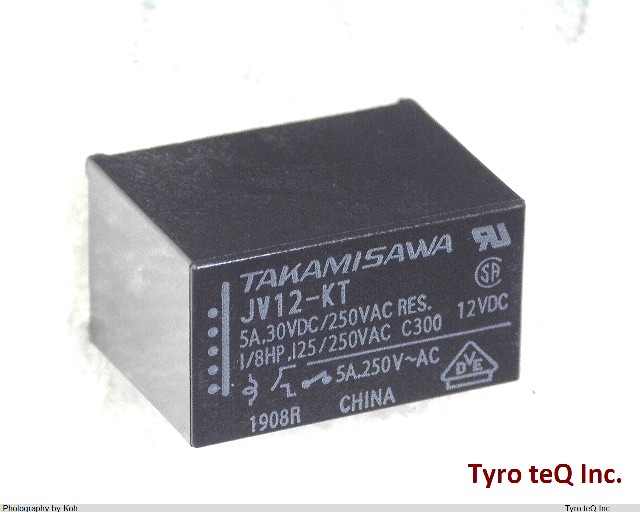

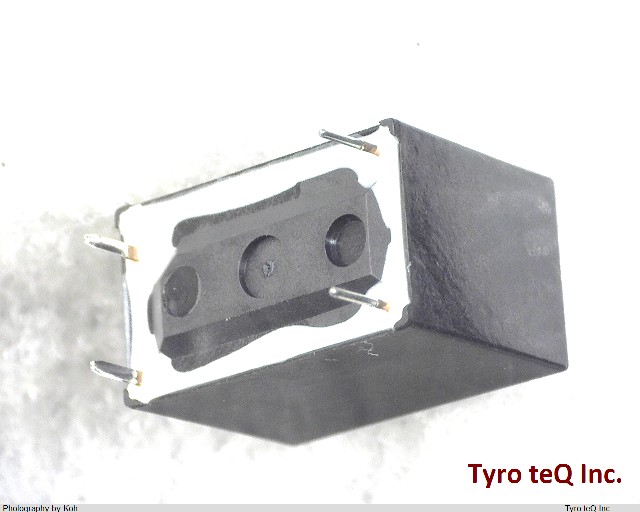

JV-12-KT データシート

Name: JV-12-KT
Brand: FUJITSU
SKU: 200025282-0000-0000-0000

JV-12-KT - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

JV-12-KT の詳細情報

型番	JV-12-KT
メーカー	FUJITSU
データシート
Body Breadth	10 inch
Body Height	12.5 mm
Body Length or Diameter	17.5 mm
Coil Current(DC)-Max	0.025 A
Coil Operate Voltage(DC)	7.9 V
Coil Power	300 mW
Coil Release Voltage(DC)	0.6 V
Coil Resistance	480 ohm
Coil Voltage(DC)-Max	12 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1250VA@250VAC
Contact AC Max Rating R Load	5A@250VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Power Rating R Load	150W@30VDC
Contact DC Max Rating R Load	5A@150VDC
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	150 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	5000 Vrms
Electrical Life	100000 Cycle(s)
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Operate Time	8 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	4
Physical Dimension	17.5mm x 10mm x 12.5mm
Reference Standard	CQC; CSA; SEMKO; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM A
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	4 ms
Sealing	RT3
Termination Type	SOLDER
Weight	4.3 g
