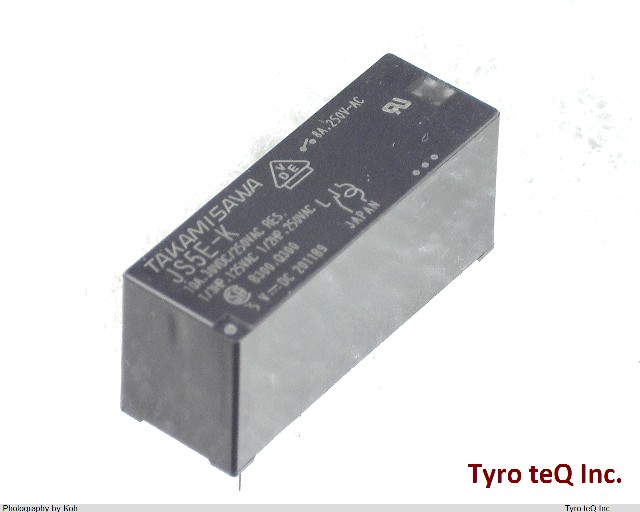

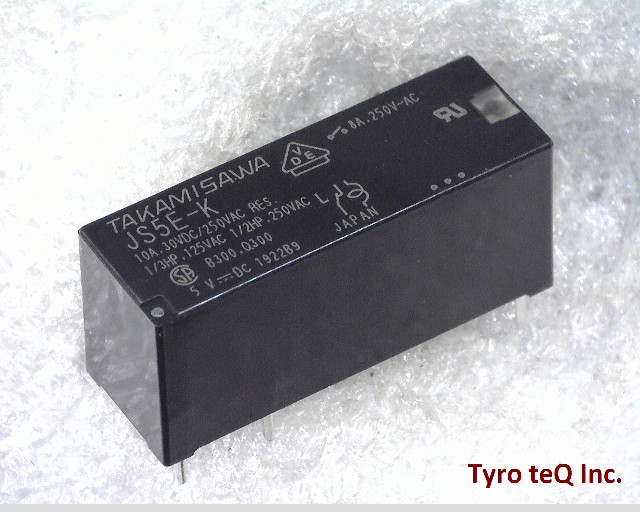

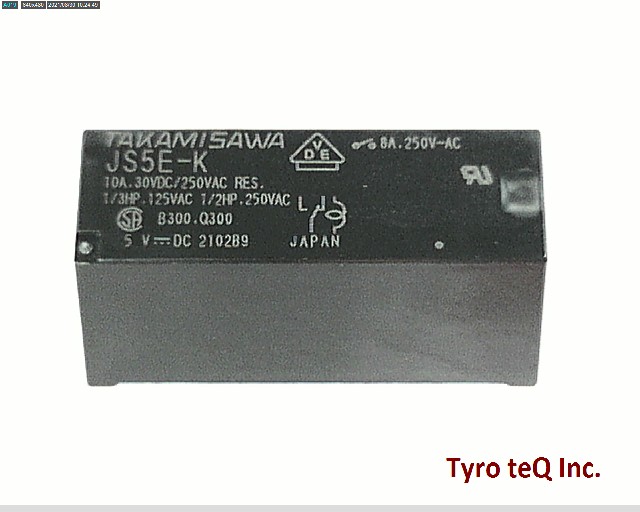

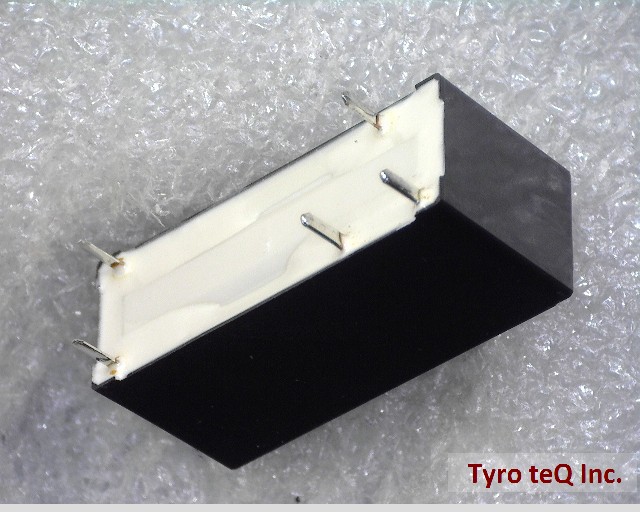

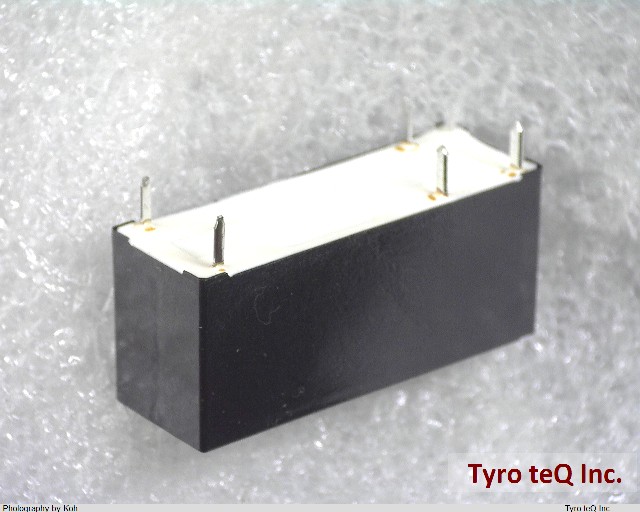

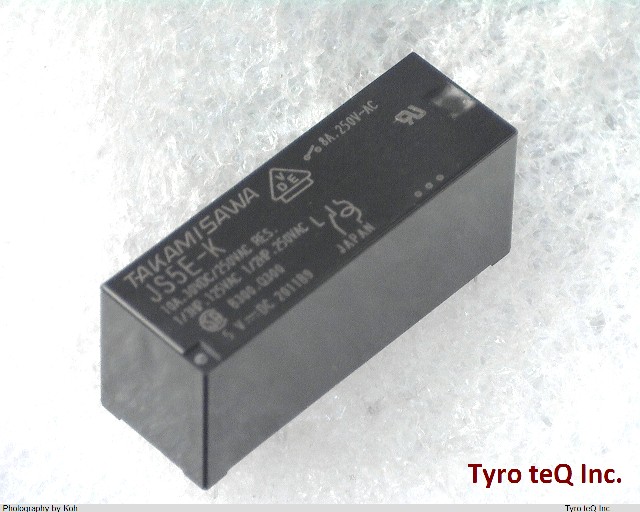

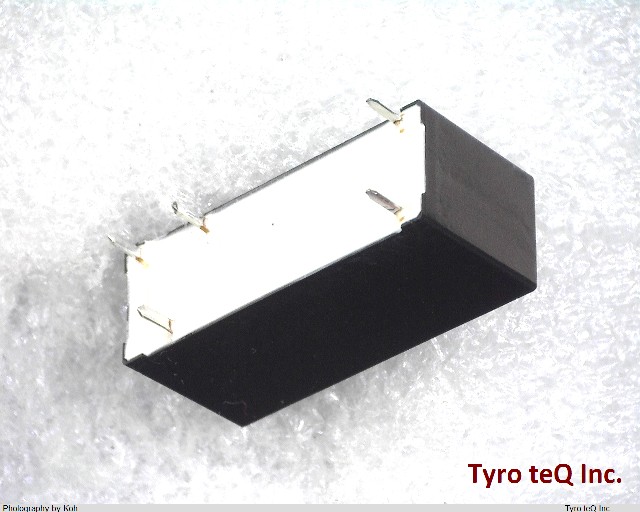

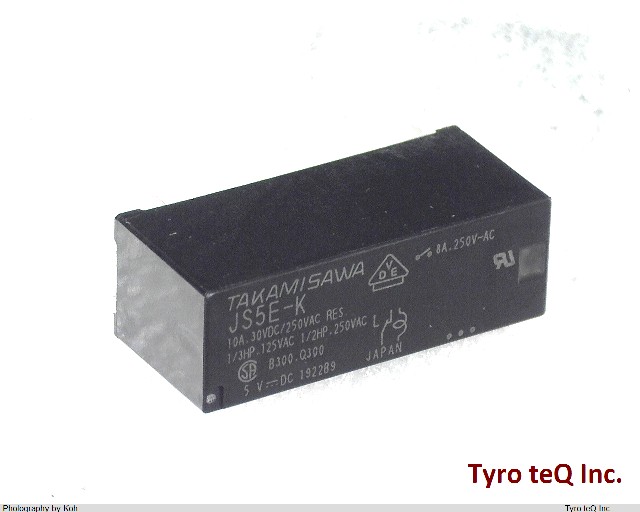

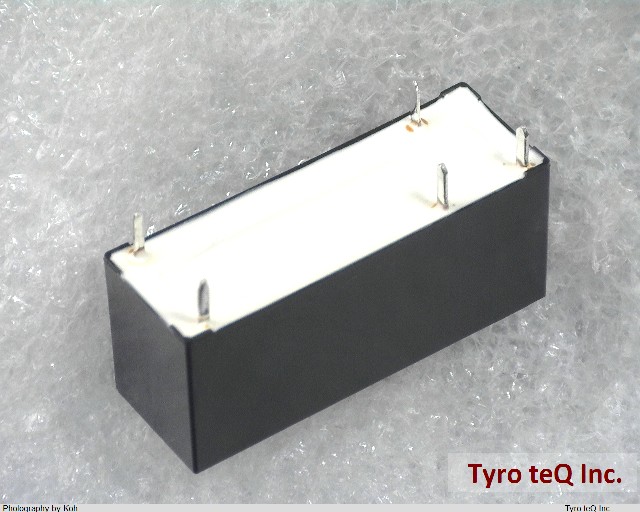

JS-5E-K データシート

Name: JS-5E-K
Brand: FUJITSU
SKU: 200080237-0000-0000-0000

JS-5E-K - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

JS-5E-K の詳細情報

型番	JS-5E-K
メーカー	FUJITSU
データシート
Additional Feature	LOW PROFILE
Body Breadth	10 inch
Body Height	12.5 mm
Body Length or Diameter	29 mm
Coil Current(DC)-Max	0.045 A
Coil Operate Voltage(DC)	3.5 V
Coil Power	225 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	112 ohm
Coil Voltage(AC)-Max	888 V
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	8A@250VAC
Contact Current(AC)-Max	8 A
Contact Current(DC)-Max	8 A
Contact DC Max Rating R Load	8A@24VDC
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	24 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	4000 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	100000 Cycle(s)
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Manufacturer Series	JS
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	6
Operate Time	10 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	5
Physical Dimension	29mm X 10mm X 12.5mm
Reference Standard	BSI; CQC; CSA; DEMCO; FIMKO; NEMCO; OVE; SEMKO; SEV; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	PLASTIC SEALED
Terminal Finish	GOLD
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	8 g
