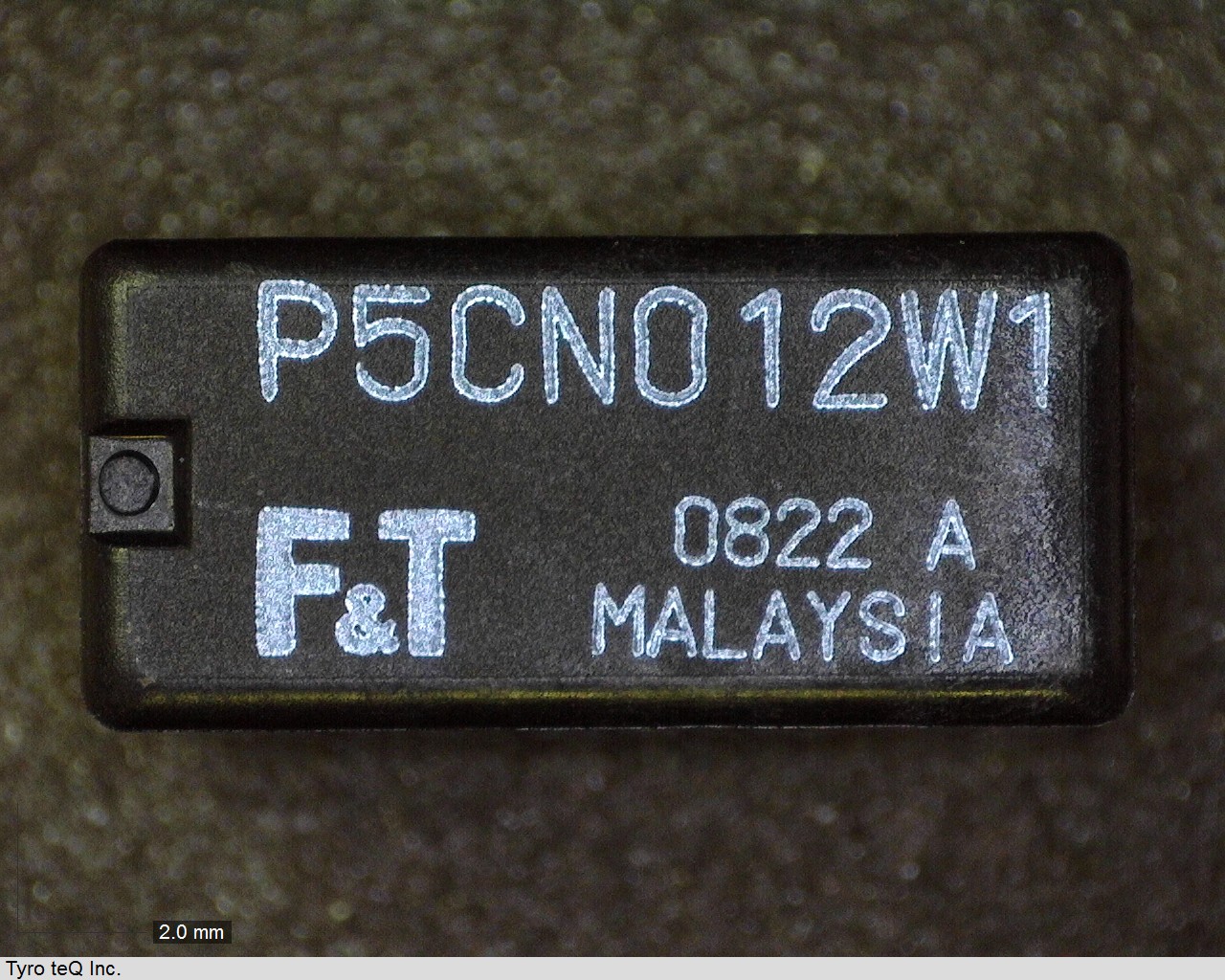

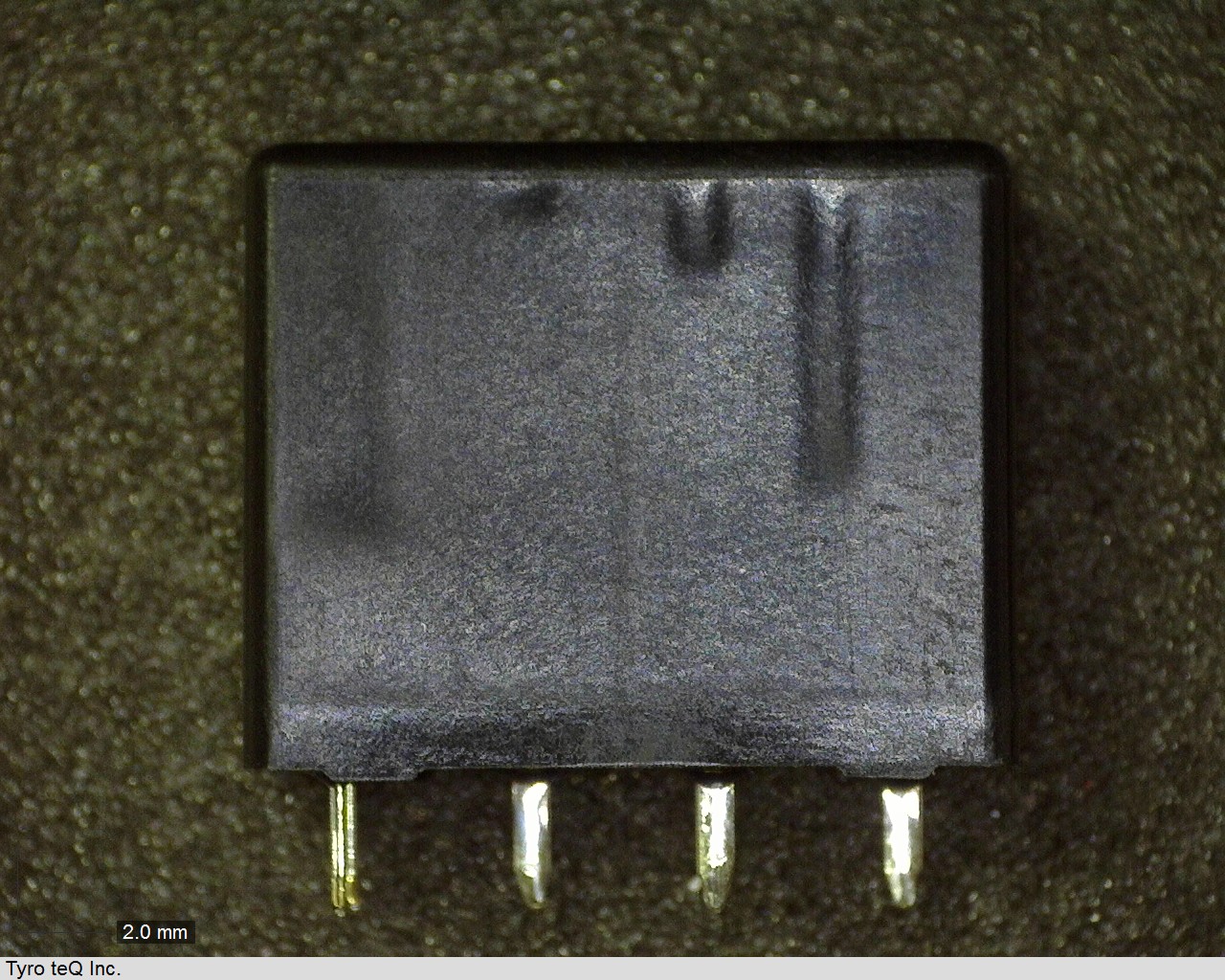

FTR-P5CN012W1 データシート

Name: FTR-P5CN012W1
Brand: FUJITSU
SKU: 160076644-0000-0000-0000

FTR-P5CN012W1 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FTR-P5CN012W1 の詳細情報

型番	FTR-P5CN012W1
メーカー	FUJITSU
データシート
Body Breadth	9.7 inch
Body Height	16.7 mm
Body Length or Diameter	20.4 mm
Coil Current(DC)-Max	0.038 A
Coil Operate Voltage(DC)	9.2 V
Coil Power	450 mW
Coil Release Voltage(DC)	1.3 V
Coil Resistance	320 ohm
Coil Voltage(DC)-Max	12 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact Current(DC)-Max	25 A
Contact DC Max Rating R Load	25A@14VDC
Contact Resistance	20 mohm
Contact Voltage(DC)-Max	14 V
Contact/Output Supply Type	DC
Dielectric Strength Between Coil and Contacts	500 Vrms
Dielectric Strength Between Open Contacts	500 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Tin Oxide
Input Switching Control Type	Random
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	5
Operate Time	10 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	5
Packing Method	TUBE
Physical Dimension	20.4mm x 9.7mm x 16.7mm
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	SUN PROOF
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	13 g
