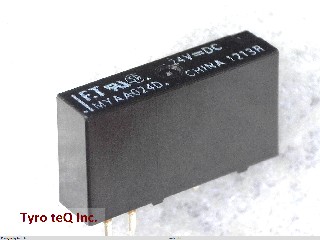

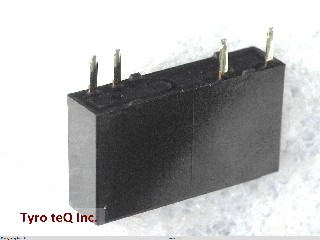

FTR-MYAA024D データシート

Name: FTR-MYAA024D
Brand: FUJITSU
SKU: 160148568-0000-0000-0000

FTR-MYAA024D - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FTR-MYAA024D の詳細情報

型番	FTR-MYAA024D
メーカー	FUJITSU
データシート
Body Breadth	5 inch
Body Height	12 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.005 A
Coil Operate Voltage(DC)	16.8 V
Coil Power	110 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	5240 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1250VA@277VAC
Contact AC Max Rating R Load	5A@277VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Power Rating R Load	150W@30VDC
Contact DC Max Rating R Load	5A@125VDC
Contact Resistance	30 mohm
Contact Voltage(AC)-Max	277 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	5080 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	50000 Cycle(s)
End Contact Material	Silver Nickel
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e2
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	4
Operate Time	10 ms
Operating Temperature-Max	90 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	4
Packing Method	TAPE AND REEL
Physical Dimension	20mm x 5mm x 12mm
Reference Standard	CQC; CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM A
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	RT3
Terminal Finish	TIN SILVER
Terminal Length	0.0033 inch
Termination Type	SOLDER
Weight	2.5 g
