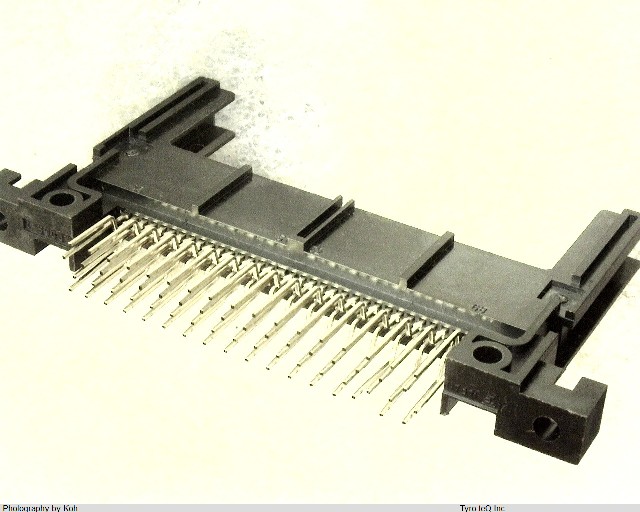

FCN-564P068-G/0-V4 データシート

Name: FCN-564P068-G/0-V4
Brand: FUJITSU
SKU: 160020990-0000-0000-0000

FCN-564P068-G/0-V4 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FCN-564P068-G/0-V4 の詳細情報

型番	FCN-564P068-G/0-V4
メーカー	FUJITSU
データシート
Additional Feature	COMPATIBLE WITH PCMCIA/JEIDA, LOW PROFILE, STAGGERED CONFIGURATION
Body Breadth	0.394 inch
Body Depth	1.39 inch
Body Length	2.91 inch
Body/Shell Style	PLUG
Connector Type	PCMCIA CONNECTOR
Contact Finish - Mating	GOLD OVER PALLADIUM NICKEL
Contact Finish - Termination	PALLADIUM
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	40 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	10000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	POLYPHENYLENE SULFIDE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	560H
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.05 inch
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	4
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.9972 mm
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	68
UL Flammability Code	94V-0
