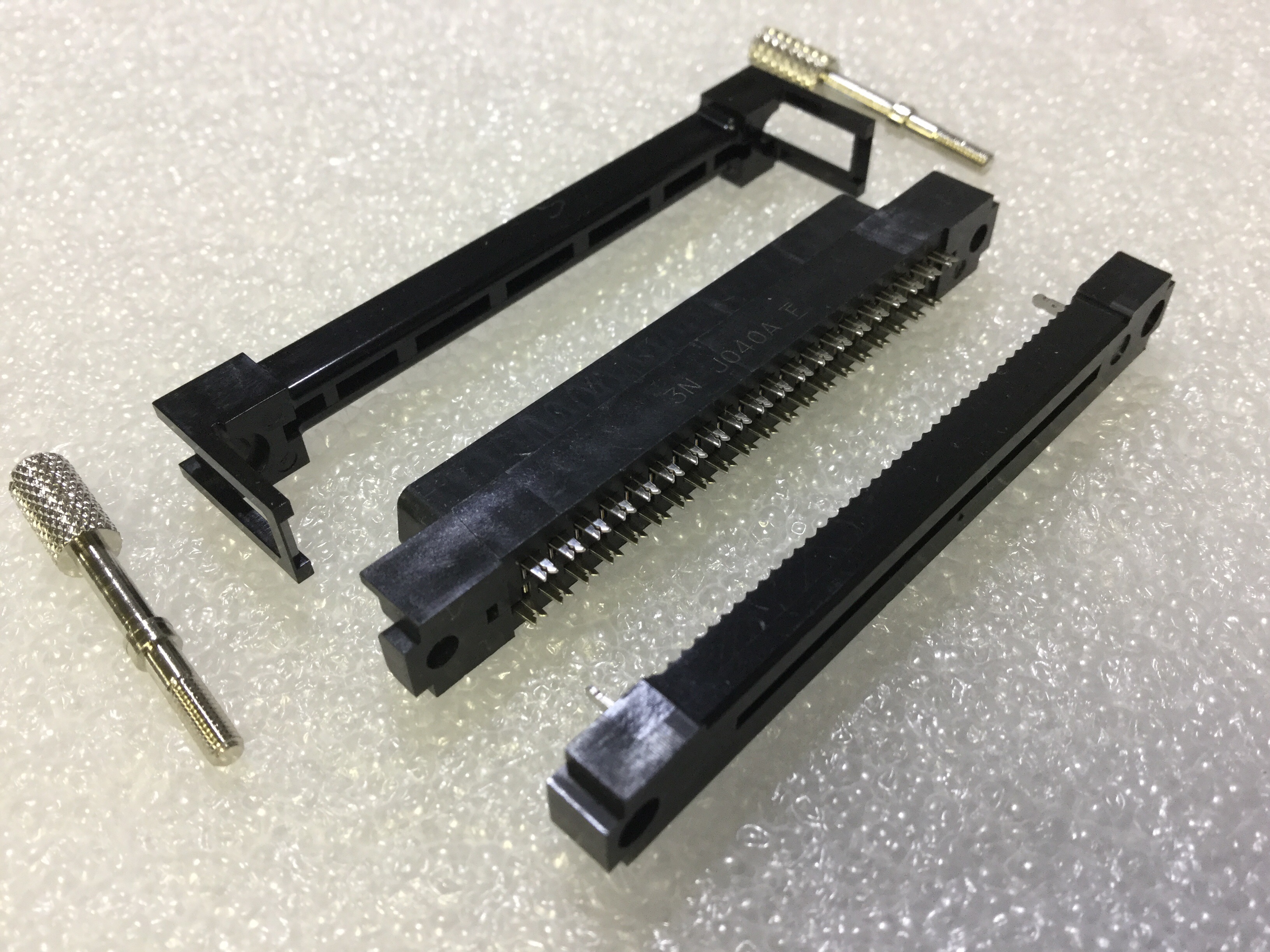

FCN-367J040-AU/FW データシート

Name: FCN-367J040-AU/FW
Brand: FUJITSU
SKU: 160145716-0000-0000-0000

FCN-367J040-AU/FW - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FCN-367J040-AU/FW の詳細情報

型番	FCN-367J040-AU/FW
メーカー	FUJITSU
データシート
Additional Feature	CLOSE-END COVER
Body Breadth	0.324 inch
Body Depth	0.256 inch
Body Length	2.735 inch
Body/Shell Style	PLUG
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Material	POLYESTER
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mounting Option 1	M2.6
Mounting Option 2	SCREWLOCKS
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	D Type Connectors
Terminal Length	0 inch
Termination Type	IDC
Total Number of Contacts	40
Wire Size-Max	28 AWG
Wire Size-Min	30 AWG
Withdrawl Force-Min	.3614 N
