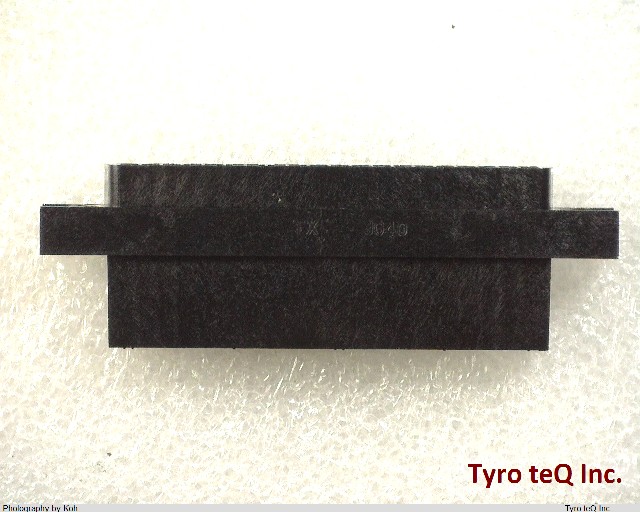

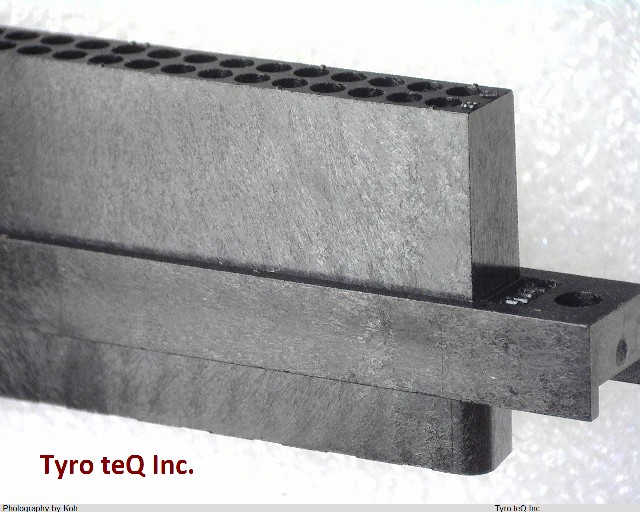

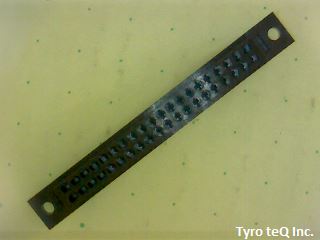

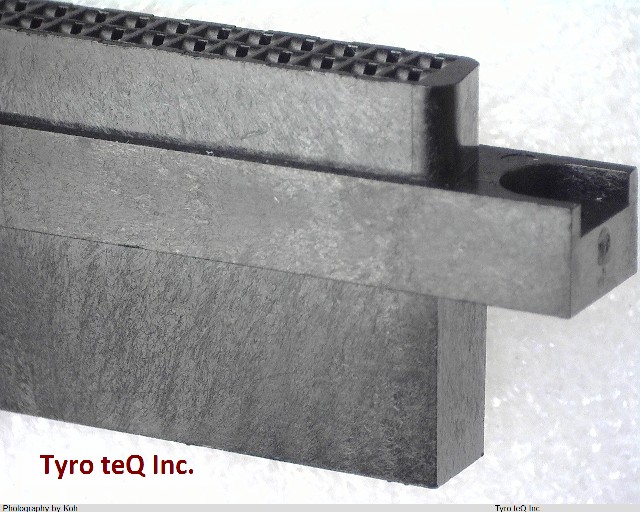

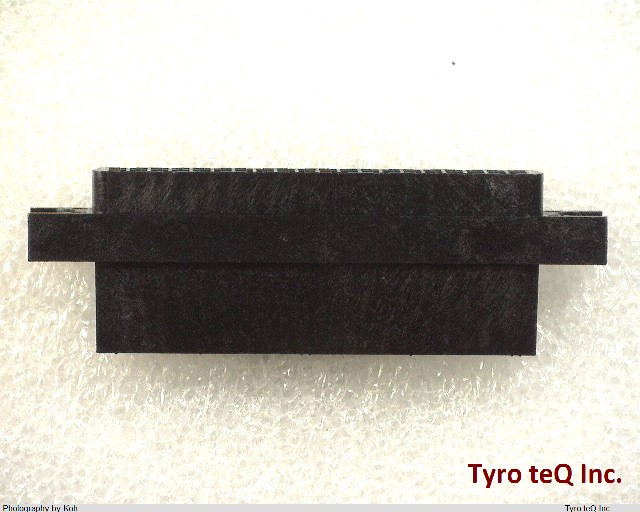

FCN-363J040 データシート

Name: FCN-363J040
Brand: FUJITSU
SKU: 160020970-0000-0000-0000

FCN-363J040 - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FCN-363J040 の詳細情報

型番	FCN-363J040
メーカー	FUJITSU
データシート
Body Breadth	0.324 inch
Body Depth	0.669 inch
Body Length	2.735 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	GOLD OVER PALLADIUM
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.058 N
Insulation Diameter-Min	0.047 inch
Insulation Resistance	1000000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	FCN-363J
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	HOLE .099-.111
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	D Type Connectors
Termination Type	CRIMP
Total Number of Contacts	40
Wire Size-Max	22 AWG
Wire Size-Min	28 AWG
