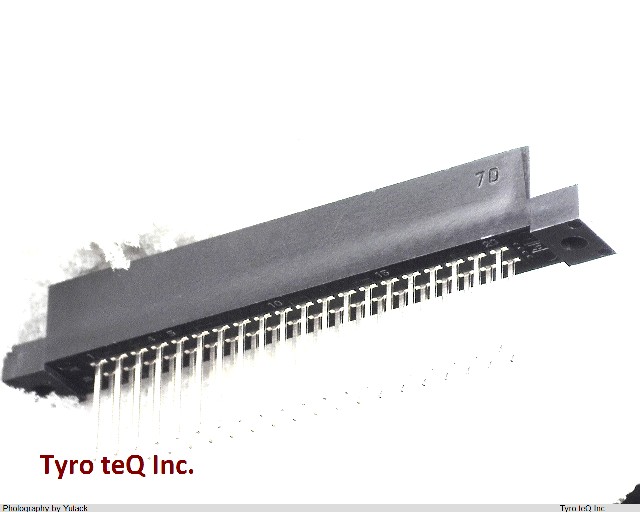

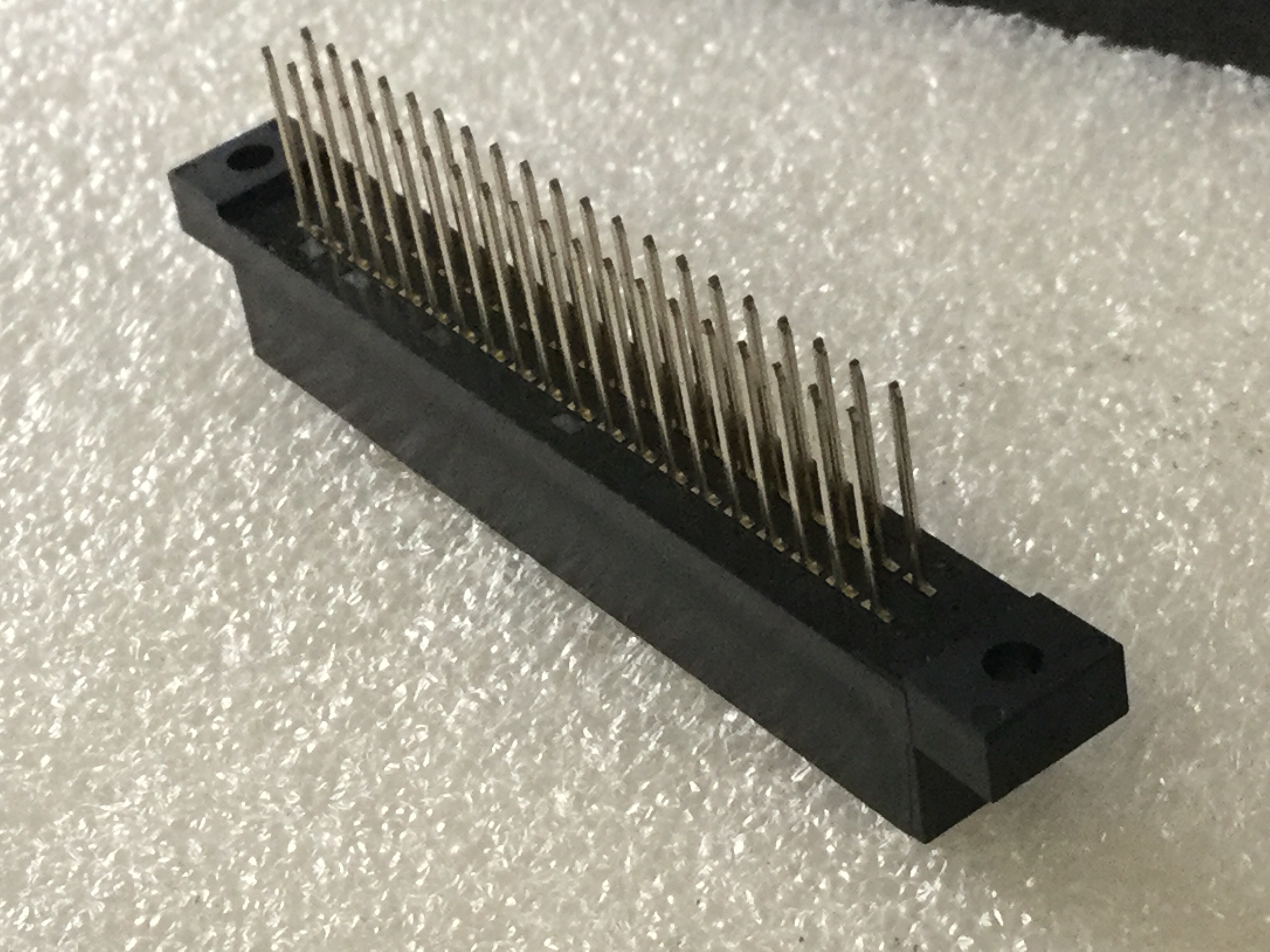

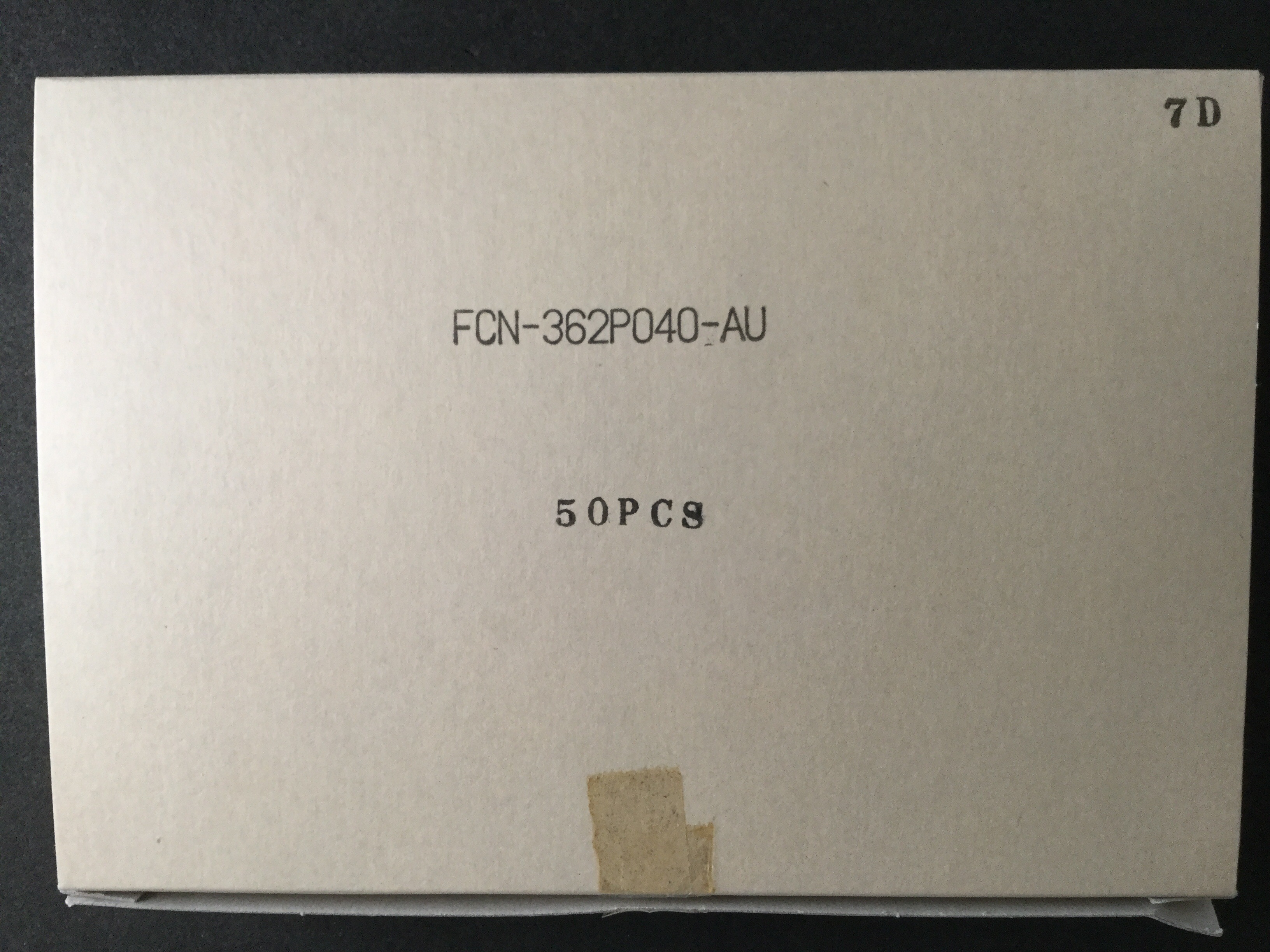

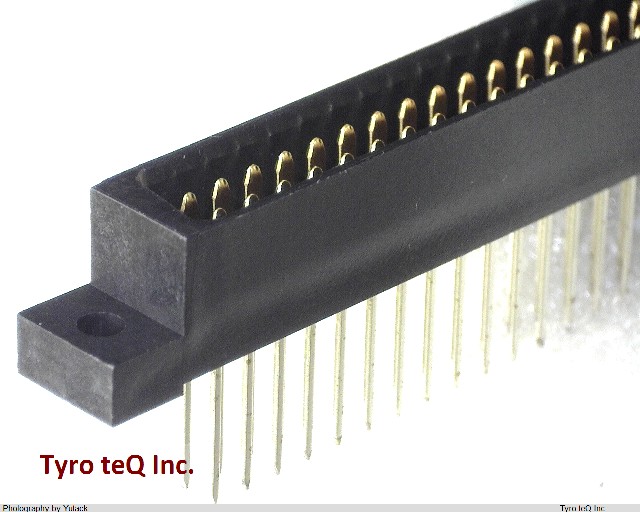

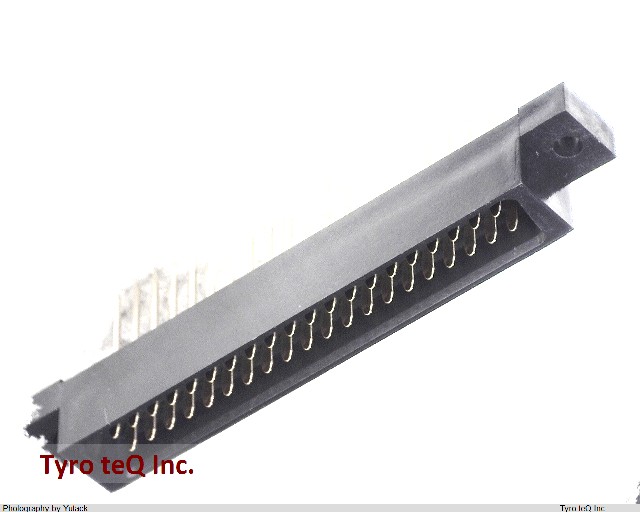

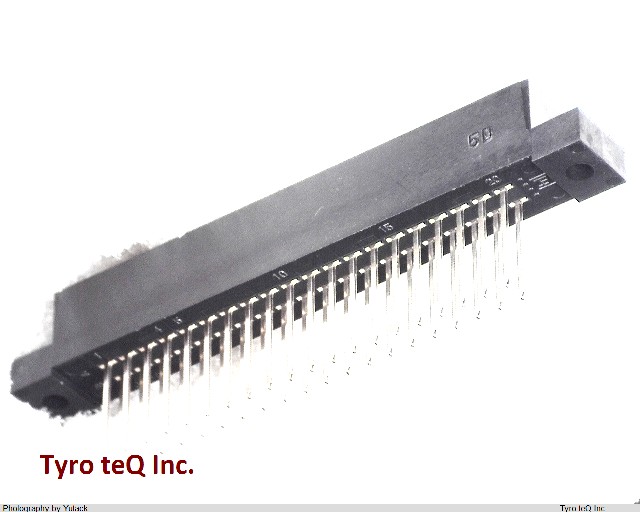

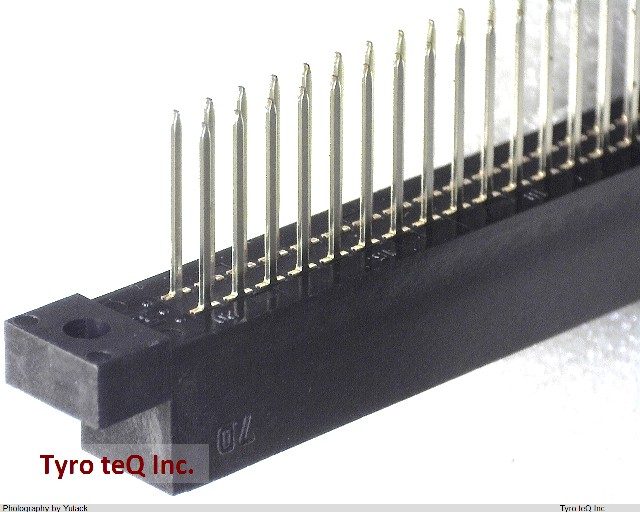

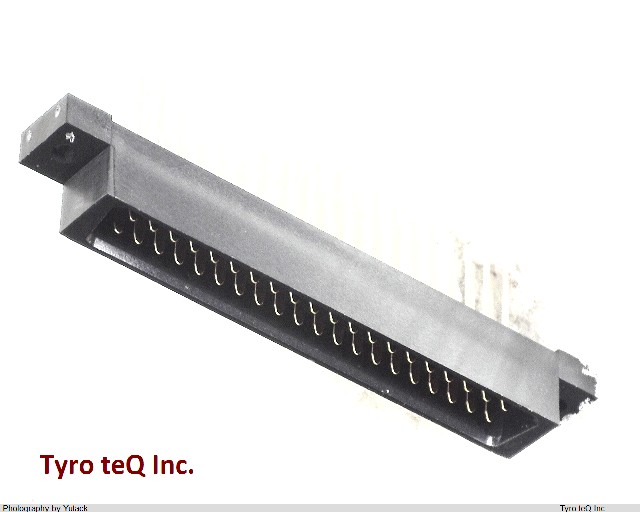

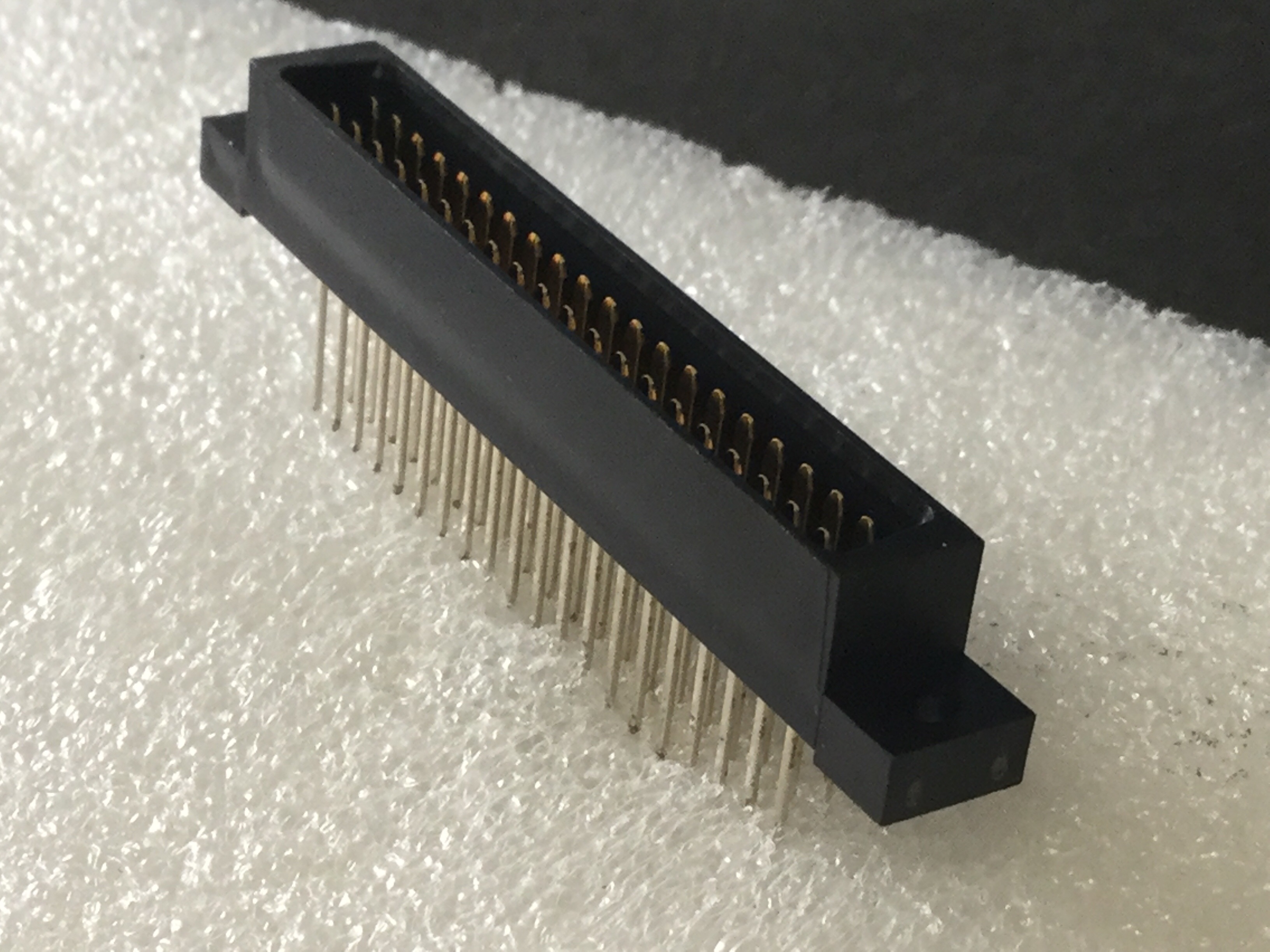

FCN-362P040-AU データシート

Name: FCN-362P040-AU
Brand: FUJITSU
SKU: 160135014-0000-0000-0000

FCN-362P040-AU - FUJITSU の商品詳細ページです。

２営業日以内に回答いたします

FCN-362P040-AU の詳細情報

型番	FCN-362P040-AU
メーカー	FUJITSU
データシート
Board Mounting Option	MOUNTING FLANGE
Body Breadth	0.324 inch
Body Depth	0.157 inch
Body Length	2.735 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD SILVER
Contact Finish - Termination	GOLD SILVER
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	3.058 N
Insulation Resistance	1000000000 ohm
Insulator Material	POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	HOLE .099-.111
Mounting Option 2	MOUNTING FLANGE
Mounting Style	STRAIGHT
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Rated Current (Signal)	3 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Sub Category	D Type Connectors
Terminal Length	0.425 inch
Terminal Pitch	2.54 mm
Termination Type	WIRE WRAP
Total Number of Contacts	40
UL Flammability Code	94V-2
Withdrawl Force-Min	.3614 N
