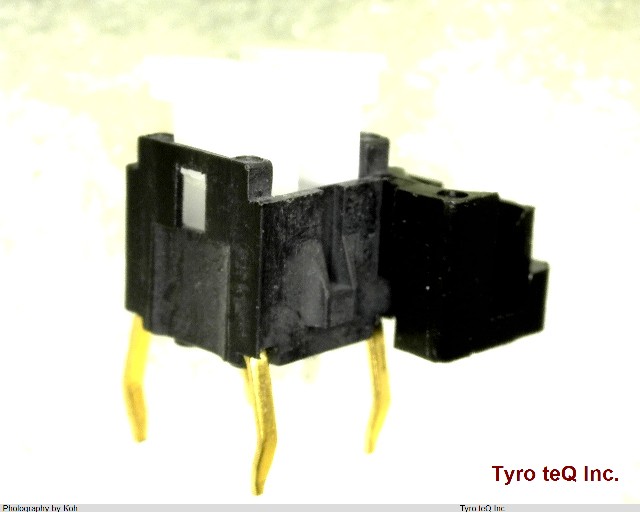

TR3-21-L2 Fujisoku

TR3-21-L2 - FUJISOKU の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

TR3-21-L2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番TR3-21-L2
メーカーFUJISOKU
Actuator Angle 0 deg
Actuator Length 0.098 inch
Actuator Travel .9906 mm
Actuator Type PUSHBUTTON

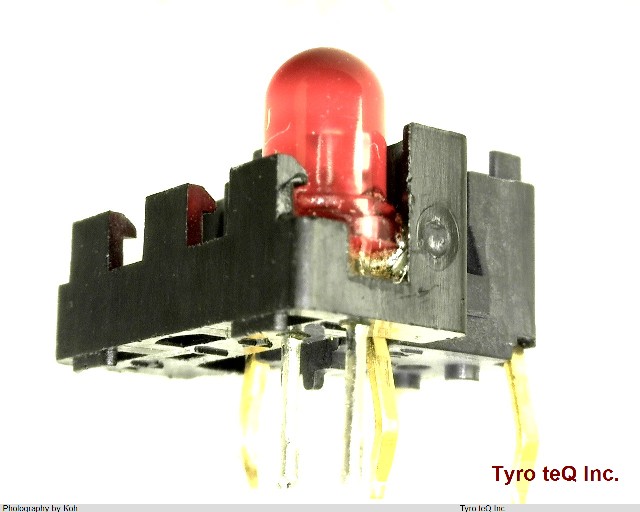

Additional Feature RED LED IN LEFT
Body Breadth 10.4902 inch
Body Height 6.5024 mm
Body Length or Diameter 11.5062 mm
Bushing Length 0 inch
Center Contact Plating GOLD
Contact Current(DC)-Max 0.01 A
Contact DC Max Rating R Load 0.01A@12VDC
Contact Function OFF-(ON)
Contact Resistance 500 mohm
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(DC)-Max 12 V
Dielectric Withstand Volts 250VAC V
Electrical Life 100000 Cycle(s)
End Contact Plating GOLD
Illumination LED
Insulation Resistance 100000000 ohm
JESD-609 Code e4
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max 70 Cel
Operating Temperature-Min -25 Cel
PCB Hole Count 7
Solderability HAND
Switch Action MOMENTARY
Switch Function SPST
Switch Type PUSHBUTTON SWITCH
Terminal Finish Gold (Au)
Terminal Length 0.138 inch
Termination Type SOLDER
Washability SOLVENT
会社名称NIDEC COPAL ELECTRONICS CORP.
設立1947
資本金JPY 389,000,000
所在地24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan
URLhttp://www.nidec-copal-electronics.com/
