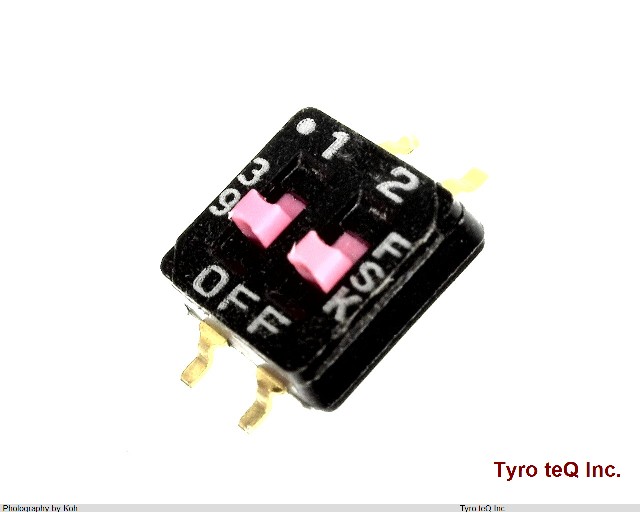

SMS602 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SMS602 |
|---|---|
| メーカー | FUJISOKU |
| Actuator Angle | 0 deg |
| Actuator Length | 0.024 inch |
| Actuator Type | SLIDE |
| Additional Feature | EMBOSS TAPE PACKAGING |
| Body Breadth | 6.4008 inch |
| Body Height | 2.2606 mm |
| Body Length or Diameter | 6.2992 mm |
| Center Contact Plating | GOLD |
| Contact Current(DC)-Max | 0.1 A |
| Contact DC Max Rating R Load | 0.1A@50VDC |
| Contact Function | ON-OFF |
| Contact Resistance | 0.05 mohm |
| Contact Timing | MAKE-BEFORE-BREAK |
| Contact Voltage(DC)-Max | 50 V |
| Dielectric Withstand Volts | 500VAC V |
| Electrical Life | 1000 Cycle(s) |
| End Contact Plating | GOLD |
| Insulation Resistance | 1000000000 ohm |
| Manufacturer Series | SMS |
| Mounting Feature | SURFACE MOUNT-STRAIGHT |
| Number of Positions | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -25 Cel |
| Solderability | HAND |
| Switch Action | HORIZONTAL |
| Switch Function | DPST |
| Termination Type | SOLDER |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
