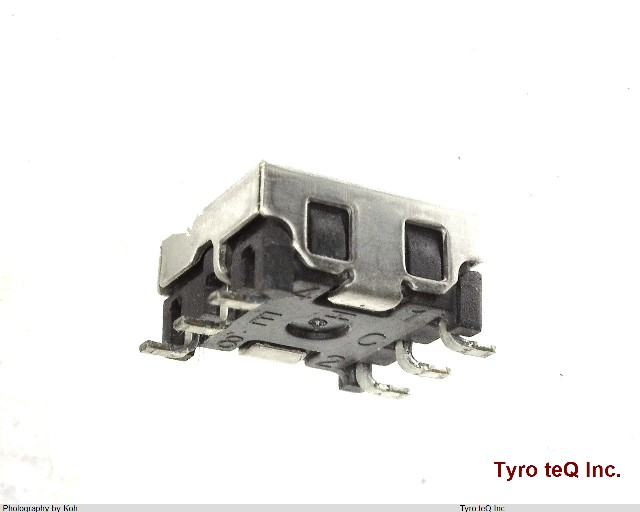

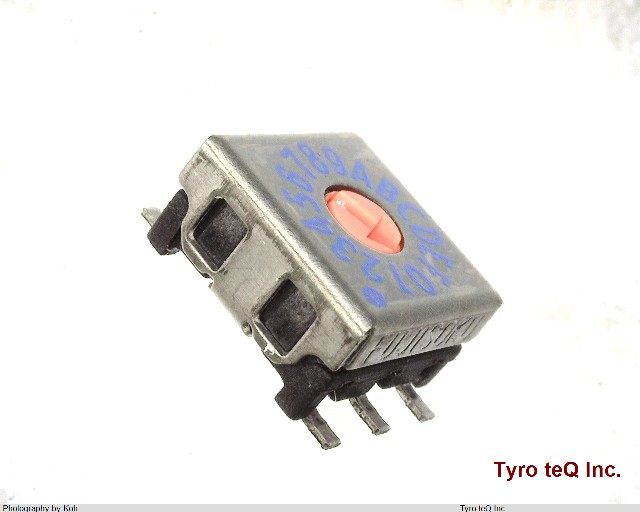

SMR7116-1
データシート
1
-
- 個
２営業日以内に回答いたします
SMR7116-1 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SMR7116-1 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Color | RED |
| Actuator Length | 0 inch |
| Actuator Type | ROTARY SCREW |
| Additional Feature | EMBOSS TAPE PACKAGING |
| Body Breadth | 7.493 inch |
| Body Height | 4.15 mm |
| Body Length or Diameter | 7.493 mm |
| Center Contact Plating | GOLD |
| Contact Current(DC)-Max | 0.03 A |
| Contact DC Max Rating R Load | .03A@15VDC |
| Contact Function | ON-ON |
| Contact Resistance | 0.2 mohm |
| Contact Timing | BREAK-BEFORE-MAKE |
| Contact Voltage(DC)-Max | 15 V |
| Dielectric Withstand Volts | 250VAC V |
| Electrical Life | 20000 Cycle(s) |
| End Contact Plating | GOLD |
| Indexing Angle | 22.5 deg |
| Insulation Resistance | 1000000000 ohm |
| JESD-609 Code | e4 |
| Manufacturer Series | SMR |
| Mounting Feature | SURFACE MOUNT-STRAIGHT |
| Number of Positions | 16 |
| Number of Switch Sections | 1 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -25 Cel |
| Packing Method | TAPE AND REEL |
| Sealing | WATERPROOF |
| Switch Action | CIRCULAR |
| Switch Function | HEXADECIMAL COMPLEMENT |
| Switch Type | ROTARY CODED SWITCH |
| Terminal Finish | Gold (Au) |
| Termination Type | SOLDER |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
