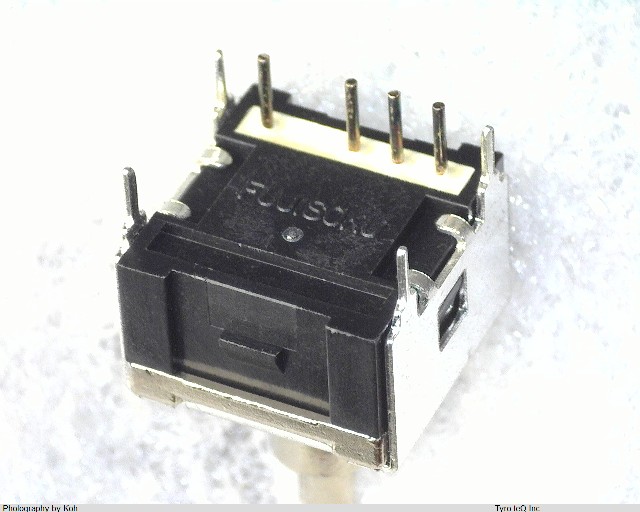

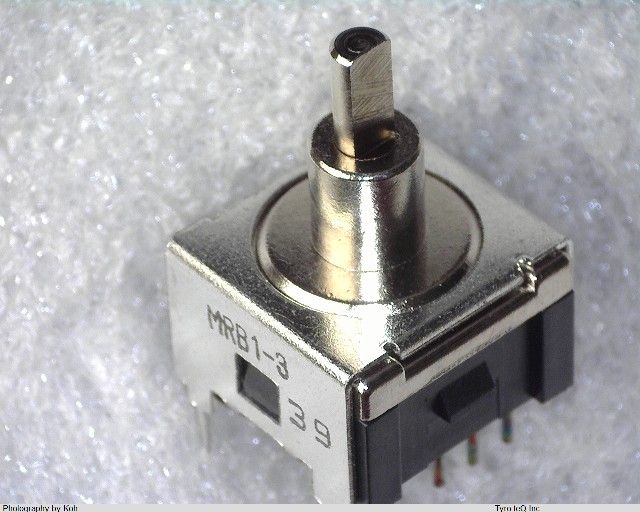

MRB1-3
データシート
1
-
- 個
２営業日以内に回答いたします
MRB1-3 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | MRB1-3 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Length | 0.256 inch |
| Actuator Type | ROTARY SHAFT |
| Additional Feature | TWIN CONTACT TYPE |
| Body Breadth | 15.7988 inch |
| Body Height | 10.9982 mm |
| Body Length or Diameter | 15.7988 mm |
| Bushing Diameter | 0.236 inch |
| Bushing Length | 0.256 inch |
| Bushing Type | UNTHREADED |
| Contact DC Max Power Rating R Load | 0.4VA@12VDC |
| Contact Function | ON-ON-ON |
| Contact Resistance | 0.2 mohm |
| Contact Timing | BREAK-BEFORE-MAKE |
| Dielectric Withstand Volts | 250VAC V |
| Electrical Life | 10000 Cycle(s) |
| Indexing Angle | 45 deg |
| Insulation Resistance | 100000000 ohm |
| Manufacturer Series | MRB |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Number of Positions | 3 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -20 Cel |
| PCB Hole Count | 8 |
| Sealing | EPOXY |
| Solderability | HAND |
| Switch Action | CIRCULAR |
| Switch Function | SP3T |
| Switch Type | ROTARY SWITCH |
| Terminal Length | 0.138 inch |
| Termination Type | SOLDER |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
