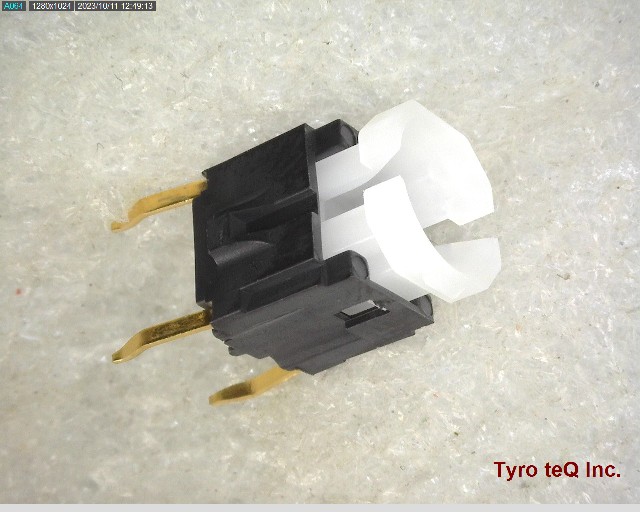

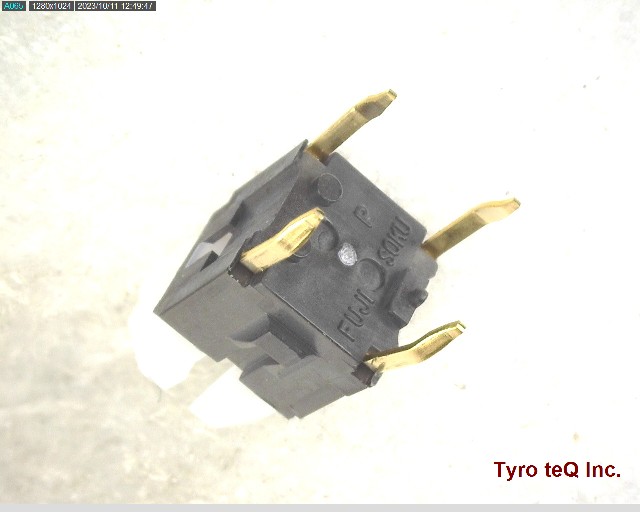

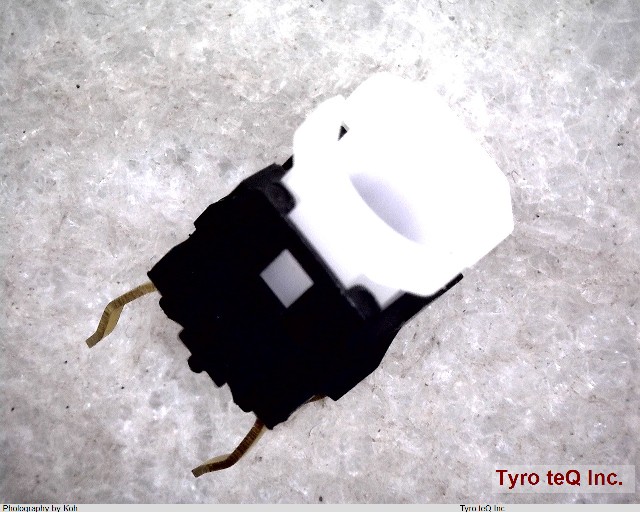

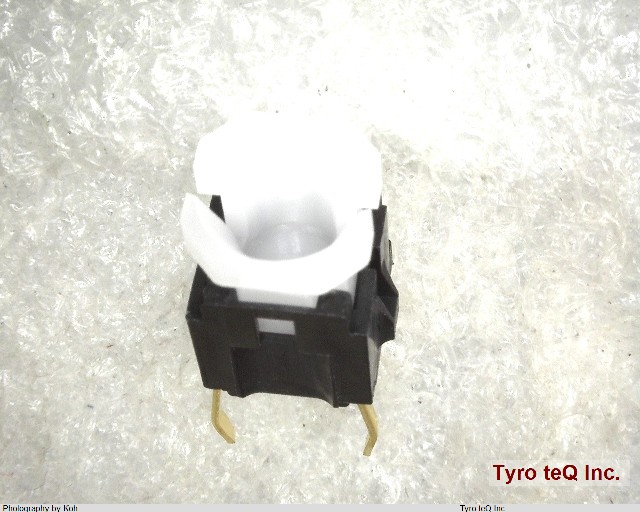

LTR1-01
データシート
1
-
- 個
２営業日以内に回答いたします
LTR1-01 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LTR1-01 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Angle (deg) | 0 |
| Actuator Length (inch) | 0.098 |
| Actuator Travel (mm) | .9906 |
| Actuator Type | PUSHBUTTON |
| Body Breadth (mm) | 5.9944 |
| Body Height (mm) | 6.5024 |
| Body Length or Diameter (mm) | 7.0104 |
| Bushing Length (inch) | 0 |
| Center Contact Plating | GOLD |
| Contact Current(DC)-Max (A) | 0.01 |
| Contact DC Max Rating R Load | 0.01A@12VDC |
| Contact Function | OFF-(ON) |
| Contact Resistance (mohm) | 500000 |
| Contact Timing | BREAK-BEFORE-MAKE |
| Contact Voltage(DC)-Max (V) | 12 |
| Dielectric Withstand Volts (V) | 250VAC |
| Electrical Life (Cycle(s)) | 100000 |
| End Contact Plating | GOLD |
| Insulation Resistance (ohm) | 100000000 |
| J-STD-609 Code | e4 |
| Manufacturer Series | LTR |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | -25 |
| PCB Hole Count | 5 |
| Solderability | HAND |
| Switch Action | MOMENTARY |
| Switch Function | SPST |
| Switch Type | PUSHBUTTON SWITCH |
| Terminal Finish | Gold (Au) |
| Terminal Length (inch) | 0.138 |
| Termination Type | SOLDER |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
