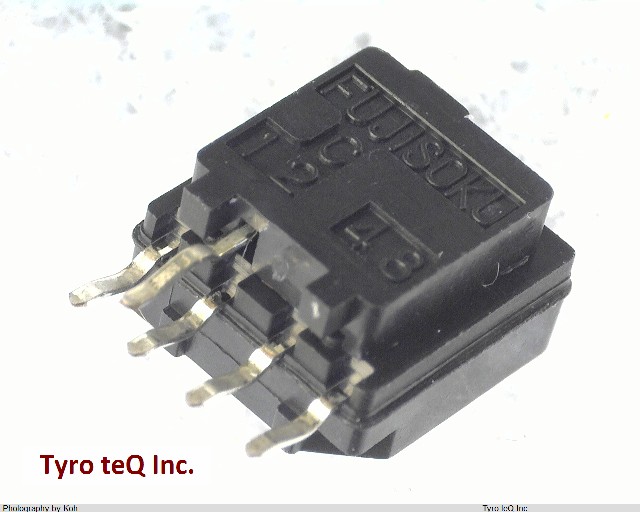

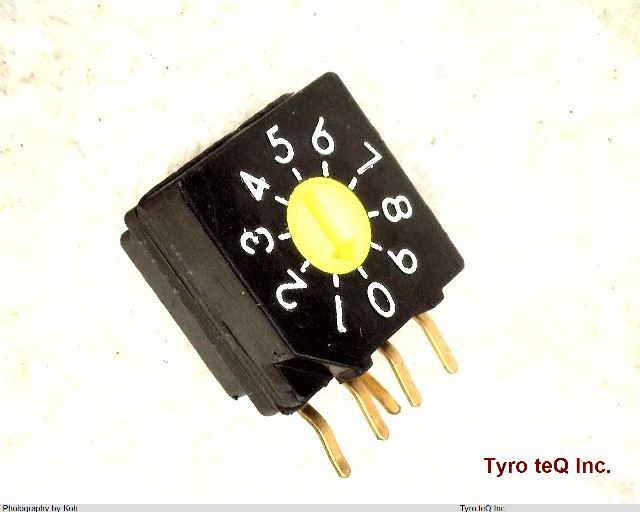

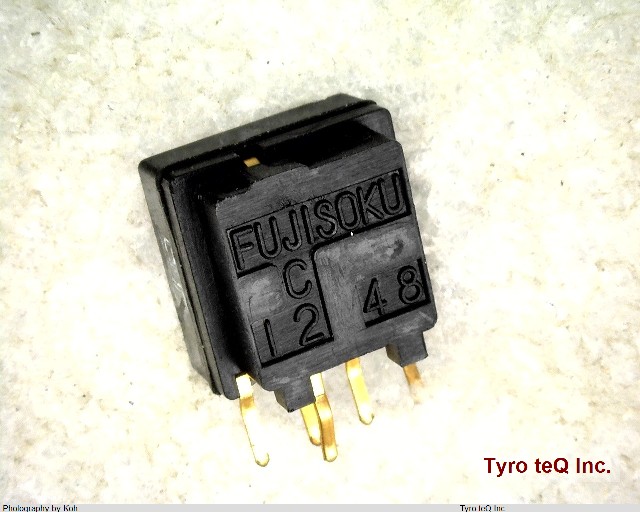

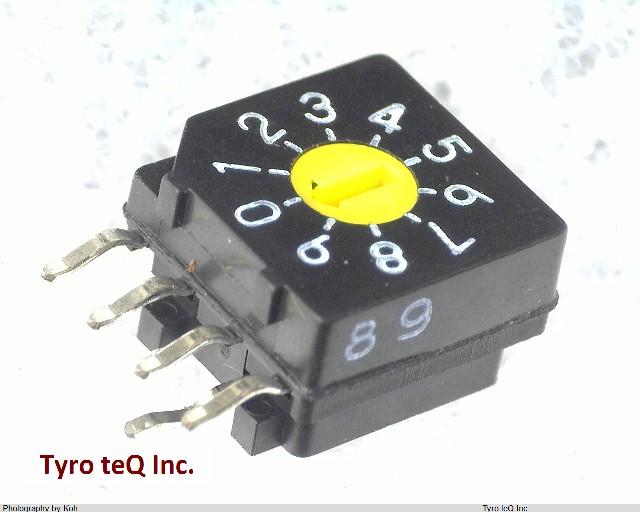

DRR3010 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DRR3010 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Color | YELLOW |
| Actuator Type | ROTARY SCREW |
| Body Breadth | 10.0076 inch |
| Body Color | BLACK |
| Body Height | 6.9088 mm |
| Body Length or Diameter | 10.0076 mm |
| Center Contact Material | COPPER ALLOY |
| Center Contact Plating | GOLD |
| Contact Current(DC)-Max | 0.03 A |
| Contact DC Max Rating R Load | 0.03A@15VDC |
| Contact Function | BINARY CODED |
| Contact Resistance | 0.1 mohm |
| Contact Voltage(DC)-Max | 15 V |
| Dielectric Withstand Volts | 250VAC V |
| Electrical Life | 20000 Cycle(s) |
| Insulation Resistance | 1000000000 ohm |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE |
| Number of Positions | 10 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| PCB Hole Count | 5 |
| Solderability | WAVE |
| Switch Action | CIRCULAR |
| Switch Function | BINARY CODED DECIMAL |
| Switch Type | ROTARY CODED SWITCH |
| Terminal Length | 0.138 inch |
| Terminal Material | BRASS |
| Termination Type | SOLDER |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
