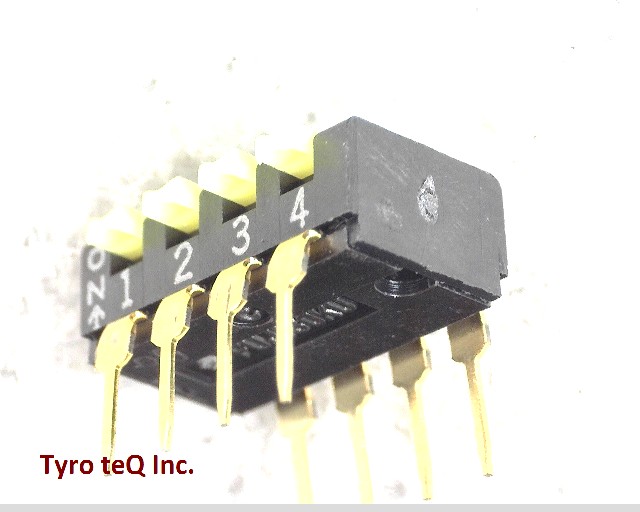

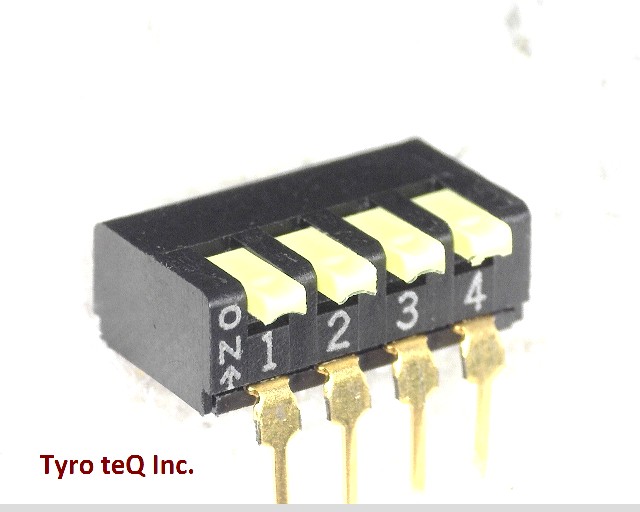

DPS804

Name: DPS804
Brand: FUJISOKU
SKU: 140193890-0000-0000-0000

DPS804 - FUJISOKU の商品詳細ページです。

２営業日以内に回答いたします

DPS804 の詳細情報

型番	DPS804
メーカー	FUJISOKU
Actuator Color	WHITE
Actuator Length	.039
Actuator Material	POLYAMIDE
Actuator Type	PIANO
Additional Feature	ROHS COMPLIANT
Body Breadth	6.5024 inch
Body Color	BLACK
Body Height	5.207 mm
Body Length or Diameter	11.7094 mm
Center Contact Material	BERYLLIUM COPPER
Center Contact Plating	GOLD OVER NICKEL
Contact Current(DC)-Max	0.1 A
Contact DC Max Rating R Load	0.1A@50VDC
Contact Function	OFF-ON
Contact Resistance	0.05 mohm
Contact Voltage(DC)-Max	50 V
Dielectric Withstand Volts	500VAC
Electrical Life	1000 Cycle(s)
End Contact Material	BERYLLIUM COPPER
End Contact Plating	GOLD OVER NICKEL
Housing Material	POLYBUTYLENE TEREPHTHALATE
Insulation Resistance	1000000000 ohm
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Manufacturer Series	DPS
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Switch Sections	4
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-20 Cel
PCB Hole Count	8
Switch Action	VERTICAL
Switch Function	SPST
Switch Type	PIANO DIP SWITCH
Terminal Finish	GOLD/NICKEL
Terminal Length	0.138 inch
Termination Type	SOLDER
