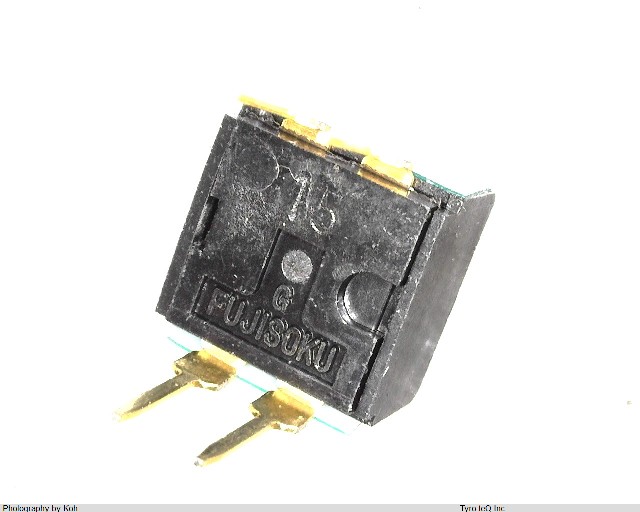

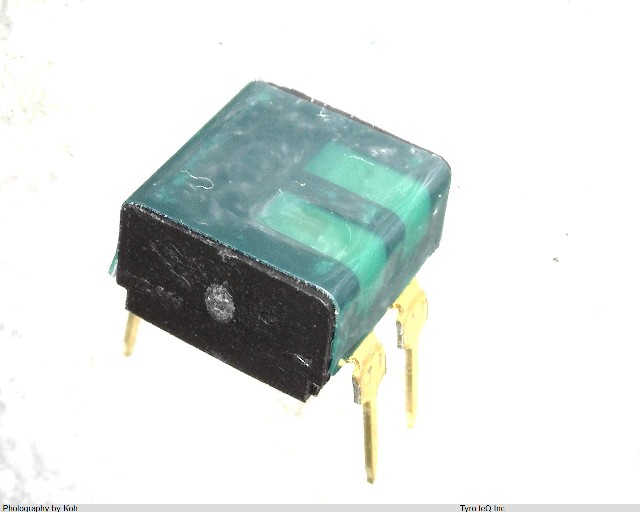

DPS702
データシート
1
-
- 個
２営業日以内に回答いたします
DPS702 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DPS702 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Length | .043 |
| Actuator Type | PIANO |
| Additional Feature | TAPE SEAL TYPE |
| Body Breadth | 6.5024 inch |
| Body Height | 4.3434 mm |
| Body Length or Diameter | 6.6548 mm |
| Contact Current(DC)-Max | 0.025 A |
| Contact DC Max Rating R Load | 0.025A@24VDC |
| Contact Function | ON-OFF |
| Contact Resistance | 0.05 mohm |
| Contact Timing | MAKE-BEFORE-BREAK |
| Contact Voltage(DC)-Max | 24 V |
| Dielectric Withstand Volts | 500VAC |
| Electrical Life | 1000 Cycle(s) |
| Insulation Resistance | 1000000000 ohm |
| Manufacturer Series | DPS |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE |
| Number of Switch Sections | 2 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -20 Cel |
| PCB Hole Count | 4 |
| Solderability | HAND |
| Switch Action | VERTICAL |
| Switch Function | SPST |
| Switch Type | PIANO DIP SWITCH |
| Terminal Length | 0.171 inch |
| Termination Type | SOLDER |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
