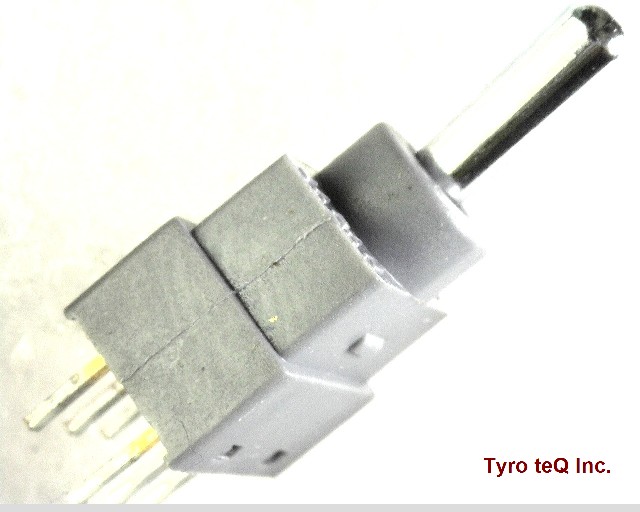

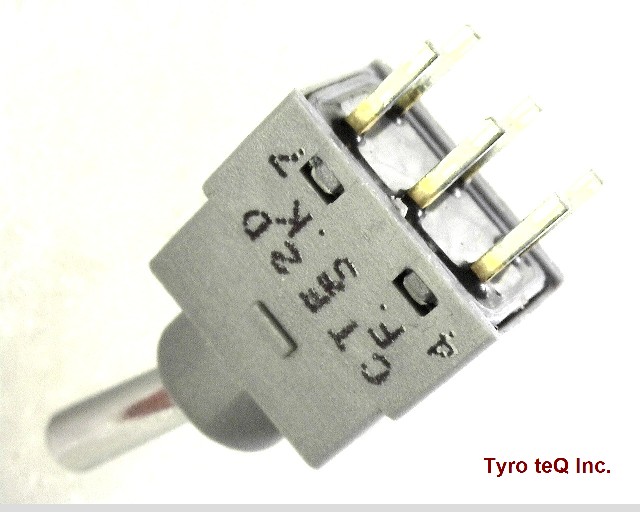

型番 | CTE2D-2M3 |
---|---|
メーカー | FUJISOKU |
Actuator Angle | 26 deg |
Actuator Length | 0.276 inch |
Actuator Type | TOGGLE BAT |
Additional Feature | WITHOUT BRACKET |
Body Breadth | 5.588 inch |
Body Height | 7.493 mm |
Body Length or Diameter | 8.4074 mm |
Bushing Diameter | 0.197 inch |
Bushing Length | 0.098 inch |
Center Contact Plating | GOLD |
Contact AC Max Rating R Load | 0.05A@48VAC |
Contact Current(AC)-Max | 0.05 A |
Contact Current(DC)-Max | 0.05 A |
Contact DC Max Rating R Load | 0.05A@48VDC |
Contact Function | ON-ON |
Contact Resistance | 0.05 mohm |
Contact Timing | BREAK-BEFORE-MAKE |
Contact Voltage(AC)-Max | 48 V |
Contact Voltage(DC)-Max | 48 V |
Dielectric Withstand Volts | 250VAC V |
Electrical Life | 10000 Cycle(s) |
End Contact Plating | GOLD |
Insulation Resistance | 500000000 ohm |
Manufacturer Series | CTE |
Mounting Feature | THROUGH HOLE-STRAIGHT |
Operating Temperature-Max | 85 Cel |
Operating Temperature-Min | -20 Cel |
PCB Hole Count | 6 |
Solderability | HAND |
Switch Action | HORIZONTAL |
Switch Function | DPDT |
Switch Type | TOGGLE SWITCH |
Terminal Length | 0.118 inch |
Termination Type | SOLDER |
Washability | SOLVENT |
