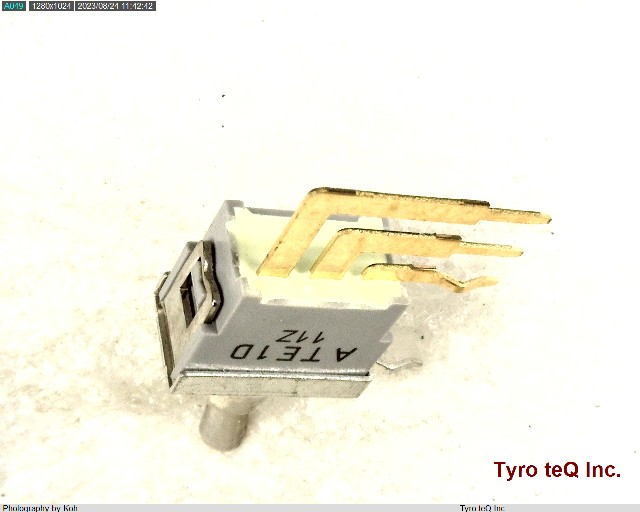

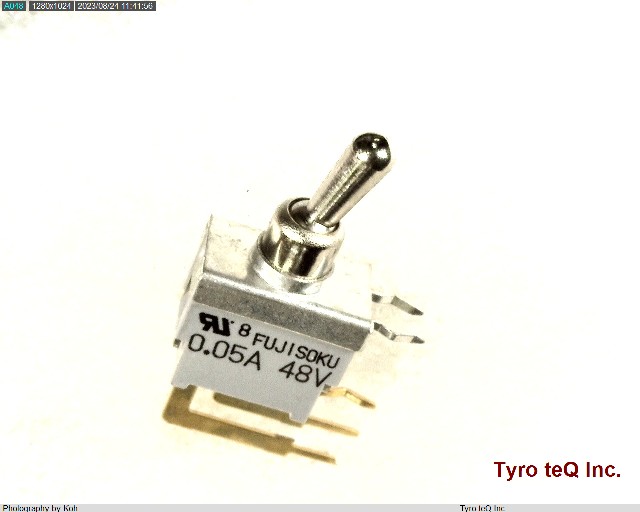

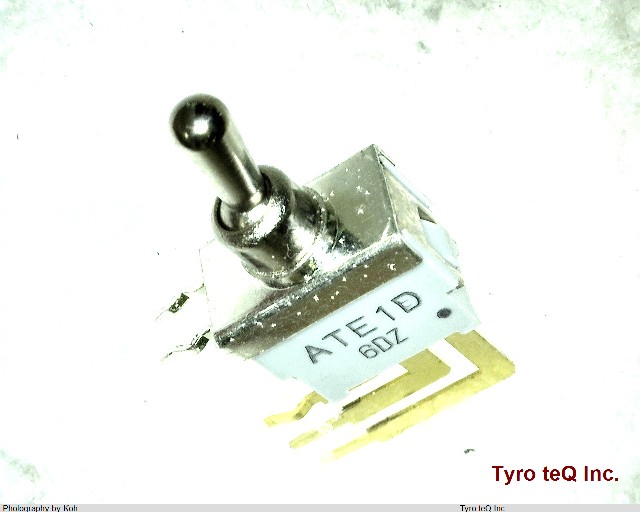

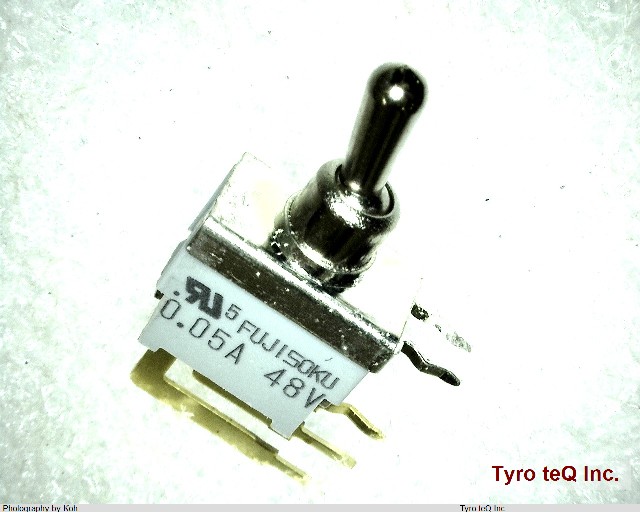

ATE1D-7M3-10-Z データシート

Name: ATE1D-7M3-10-Z
Brand: FUJISOKU
SKU: 400067791-0000-0000-0000

ATE1D-7M3-10-Z - FUJISOKU の商品詳細ページです。

２営業日以内に回答いたします

ATE1D-7M3-10-Z の詳細情報

型番	ATE1D-7M3-10-Z
メーカー	FUJISOKU
データシート
Actuator Angle (deg)	26
Actuator Length (inch)	0.236
Actuator Type	TOGGLE
Body Breadth (mm)	9.8044
Body Length or Diameter (mm)	5.6896
Bushing Type	UNTHREADED
Center Contact Plating	GOLD
Contact AC Max Rating R Load	0.05A@60VAC
Contact Current(AC)-Max (A)	0.05
Contact Current(DC)-Max (A)	0.05
Contact DC Max Rating R Load	0.05A@60VDC
Contact Function	ON-ON
Contact Resistance (mohm)	50
Contact Voltage(AC)-Max (V)	60
Contact Voltage(DC)-Max (V)	60
Dielectric Withstand Volts (V)	250VAC
Electrical Life (Cycle(s))	10000
End Contact Plating	GOLD
Insulation Resistance (ohm)	500000000
Mounting Feature	THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-20
PCB Hole Count	5
Switch Function	SPDT
Switch Type	TOGGLE SWITCH
Terminal Length (inch)	0.13
Termination Type	SOLDER
