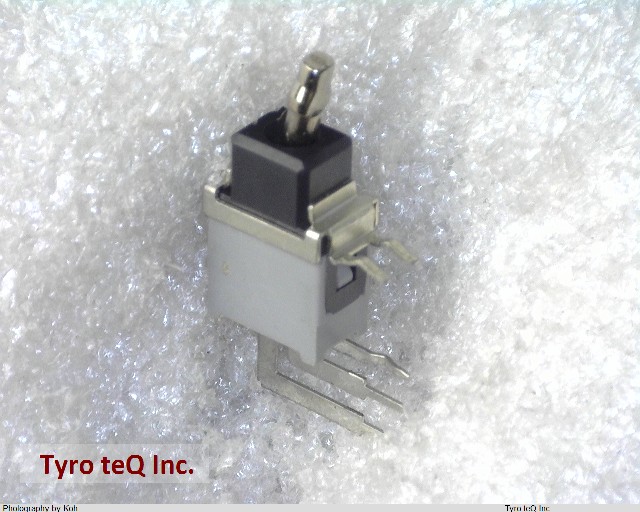

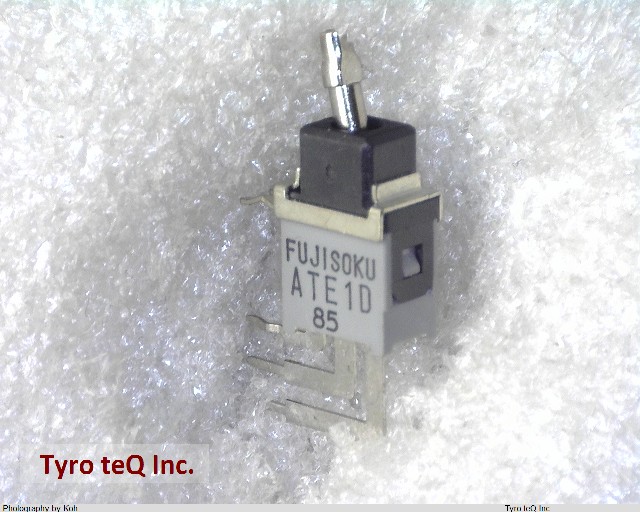

ATE1D-7J3-10
  • ATE1D-7J3-10
  • ATE1D-7J3-10
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

ATE1D-7J3-10 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ATE1D-7J3-10
メーカーFUJISOKU
データシートProduct_list_pdf
Actuator Angle 26 deg
Actuator Length 0.394 inch
Actuator Material PLASTIC
Actuator Type TOGGLE COLUMN
Additional Feature MOUNT WITH CAP
Body Breadth 5.0038 inch
Body Height 14.5796 mm
Body Length or Diameter 9.3472 mm
Bushing Length 0.157 inch
Bushing Type UNTHREADED
Center Contact Plating GOLD
Contact AC Max Rating R Load 0.05A@48VAC
Contact Current(AC)-Max 0.05 A
Contact Current(DC)-Max 0.05 A
Contact DC Max Rating R Load 0.05A@48VDC
Contact Function ON-ON
Contact Resistance 0.05 mohm
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(AC)-Max 48 V
Contact Voltage(DC)-Max 48 V
Dielectric Withstand Volts 250VAC V
Electrical Life 30000 Cycle(s)
End Contact Plating GOLD
Insulation Resistance 500000000 ohm
Manufacturer Series ATE-J
Mounting Feature THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Max 85 Cel
Operating Temperature-Min -20 Cel
PCB Hole Count 5
Solderability HAND
Switch Action HORIZONTAL
Switch Function SPDT
Switch Type TOGGLE SWITCH
Terminal Length 0.13 inch
Termination Type SOLDER
Washability SOLVENT
