ATE1D-2M3-10-Z データシート

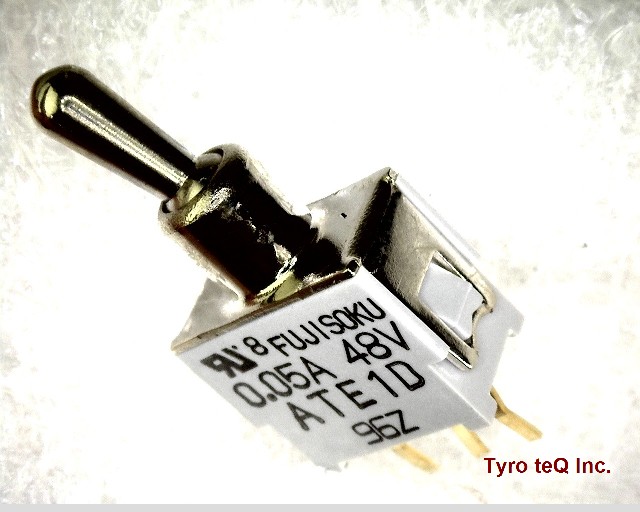

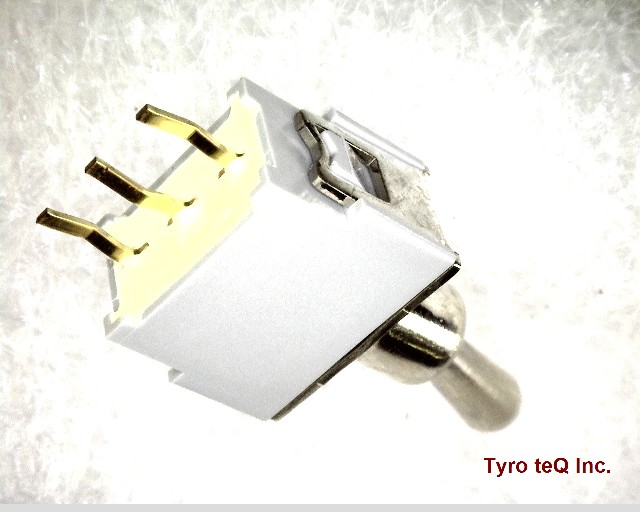

Name: ATE1D-2M3-10-Z
Brand: FUJISOKU
SKU: 110238556-0000-0000-0000

ATE1D-2M3-10-Z - FUJISOKU の商品詳細ページです。

２営業日以内に回答いたします

ATE1D-2M3-10-Z の詳細情報

型番	ATE1D-2M3-10-Z
メーカー	FUJISOKU
データシート
Actuator Angle	26 deg
Actuator Length	0.236 inch
Actuator Type	TOGGLE
Body Breadth	5.0038 inch
Body Height	8.001 mm
Body Length or Diameter	9.4996 mm
Bushing Length	0.157 inch
Bushing Type	UNTHREADED
Contact AC Max Power Rating R Load	0.4VA@60VAC
Contact AC Max Rating R Load	0.05A@60VAC
Contact Current(AC)-Max	0.05 A
Contact Current(DC)-Max	0.05 A
Contact DC Max Rating R Load	0.05A@60VDC
Contact Function	ON-ON
Contact Resistance	0.05 mohm
Contact Voltage(AC)-Max	60 V
Contact Voltage(DC)-Max	60 V
Dielectric Withstand Volts	250VAC V
Electrical Life	10000 Cycle(s)
Insulation Resistance	500000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
PCB Hole Count	5
Switch Action	HORIZONTAL
Switch Function	SPDT
Switch Type	TOGGLE SWITCH
Terminal Length	0.13 inch
Termination Type	SOLDER
