ALE2E-2M4-10 データシート Fujisoku

ALE2E-2M4-10 - FUJISOKU の商品詳細ページです。

1

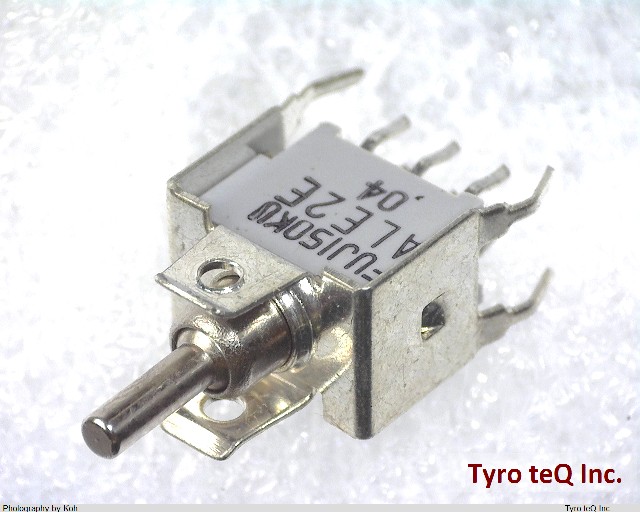

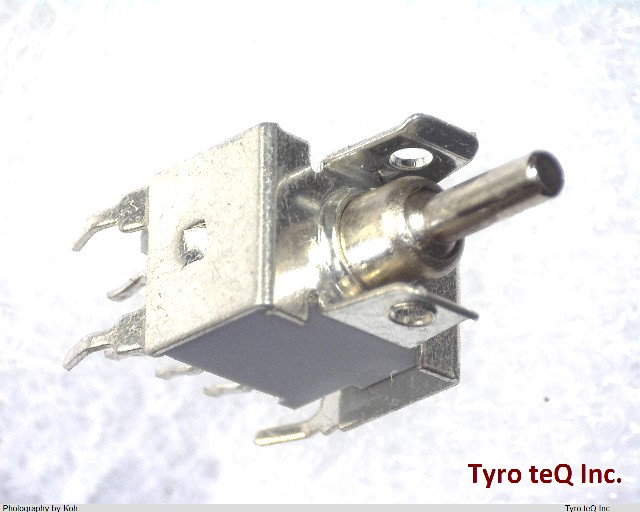

ALE2E-2M4-10
  • ALE2E-2M4-10
  • ALE2E-2M4-10
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

ALE2E-2M4-10 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ALE2E-2M4-10
メーカーFUJISOKU
データシートProduct_list_pdf
Actuator Angle 26 deg
Actuator Length 0.689 inch
Actuator Type ROCKER
Additional Feature UL APPROVED
Body Breadth 7.493 inch
Body Height 8.3058 mm
Center Contact Plating GOLD
Contact AC Max Rating R Load 0.05A@48VAC
Contact Current(AC)-Max 0.05 A
Contact Current(DC)-Max 0.05 A
Contact DC Max Rating R Load 0.05A@48VDC
Contact Function ON-OFF-ON
Contact Resistance 0.05 mohm
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(AC)-Max 48 V
Contact Voltage(DC)-Max 48 V
Dielectric Withstand Volts 250VAC V
Electrical Life 50000 Cycle(s)
End Contact Plating GOLD
Insulation Resistance 500000000 ohm
Manufacturer Series ALE
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max 85 Cel
Operating Temperature-Min -20 Cel
PCB Hole Count 10
Solderability HAND
Switch Action HORIZONTAL
Switch Function DPDT
Switch Type ROCKER SWITCH
Terminal Length 0.13 inch
Termination Type SOLDER
Washability SOLVENT
会社名称NIDEC COPAL ELECTRONICS CORP.
設立1947
資本金JPY 389,000,000
所在地24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan
URLhttp://www.nidec-copal-electronics.com/
