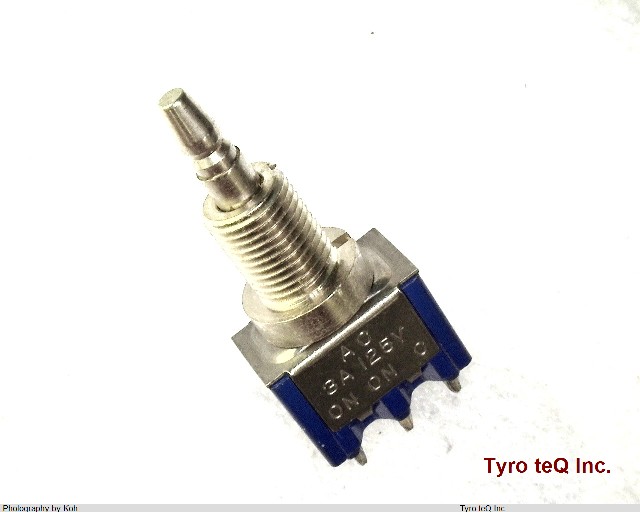

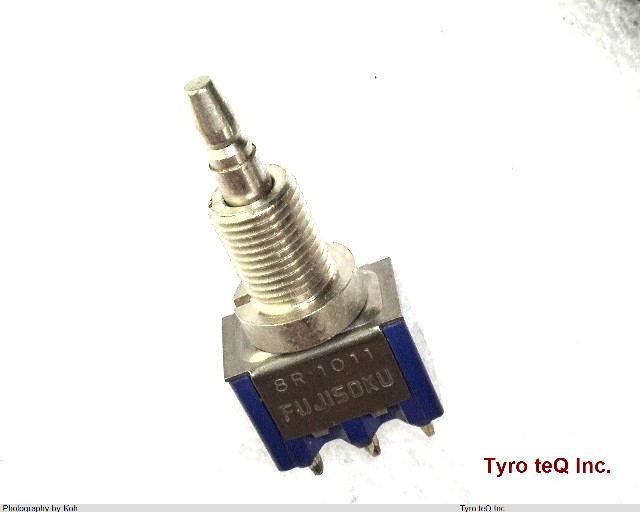

8R1011
データシート
1
-
- 個
２営業日以内に回答いたします
8R1011 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 8R1011 |
|---|---|
| メーカー | FUJISOKU |
| データシート |  |
| Actuator Angle | 0 deg |
| Actuator Length | 0.413 inch |
| Actuator Travel | 2.4892 mm |
| Actuator Type | PUSHBUTTON |
| Additional Feature | SOFT TOUCH, UL |
| Body Breadth | 8.001 inch |
| Body Height | 12.4968 mm |
| Body Length or Diameter | 13.0048 mm |
| Bushing Length | 0.315 inch |
| Bushing Type | 1/4-40 |
| Center Contact Plating | GOLD |
| Contact AC Max Rating R Load | 3A@125VAC |
| Contact Current(AC)-Max | 3 A |
| Contact Current(DC)-Max | 0.06 A |
| Contact DC Max Rating R Load | 0.06A@30VDC |
| Contact Function | ON-ON |
| Contact Resistance | 0.01 mohm |
| Contact Timing | BREAK-BEFORE-MAKE |
| Contact Voltage(AC)-Max | 125 V |
| Contact Voltage(DC)-Max | 30 V |
| Dielectric Withstand Volts | 1000VAC V |
| Electrical Life | 25000 Cycle(s) |
| End Contact Plating | GOLD |
| Insulation Resistance | 1000000000 ohm |
| Manufacturer Series | 8R |
| Mounting Feature | PANEL MOUNT |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -20 Cel |
| Sealing | EPOXY |
| Solderability | HAND |
| Switch Action | ALTERNATE |
| Switch Function | SPDT |
| Terminal Length | 0.157 inch |
| Termination Type | SOLDER LUG |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
