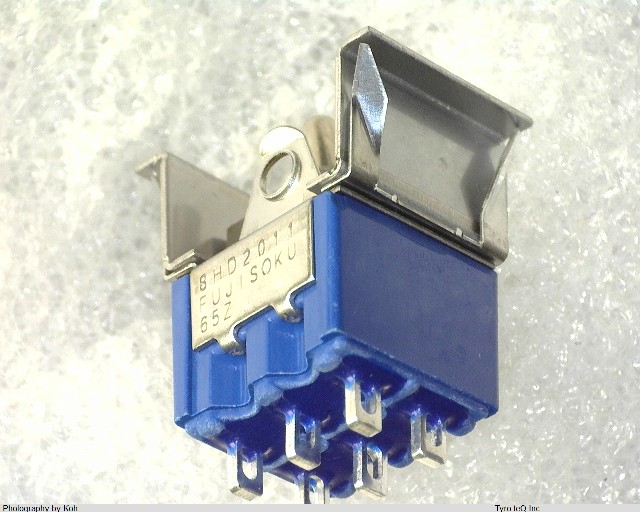

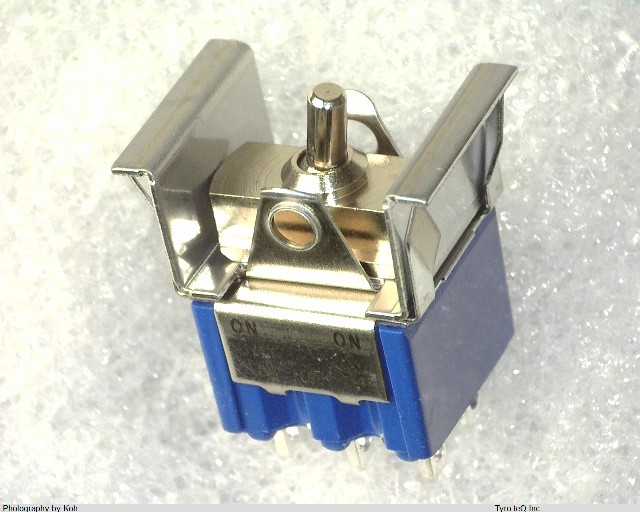

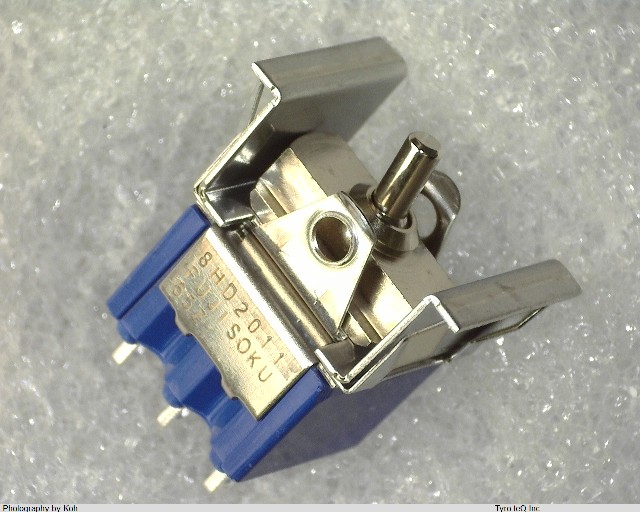

8HD2011 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 8HD2011 |
|---|---|
| メーカー | FUJISOKU |
| Actuator Angle | 24 deg |
| Actuator Type | ROCKER |
| Additional Feature | UL, CSA APPROVED |
| Body Breadth | 12.7 inch |
| Body Length or Diameter | 13.0048 mm |
| Center Contact Plating | SILVER |
| Contact AC Max Rating R Load | 6A@125VAC |
| Contact Current(AC)-Max | 6 A |
| Contact Current(DC)-Max | 0.01 A |
| Contact DC Max Rating R Load | 0.01A@5VDC |
| Contact Function | ON-ON |
| Contact Resistance | 0.01 mohm |
| Contact Timing | BREAK-BEFORE-MAKE |
| Contact Voltage(AC)-Max | 125 V |
| Contact Voltage(DC)-Max | 5 V |
| Dielectric Withstand Volts | 1000VAC V |
| Electrical Life | 30000 Cycle(s) |
| End Contact Plating | SILVER |
| Insulation Resistance | 1000000000 ohm |
| Manufacturer Series | 8HD |
| Mounting Feature | PANEL MOUNT |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -20 Cel |
| Solderability | HAND |
| Switch Action | ALTERNATE |
| Switch Function | DPDT |
| Switch Type | ROCKER SWITCH |
| Termination Type | SOLDER LUG |
| Washability | SOLVENT |
| 会社名称 | NIDEC COPAL ELECTRONICS CORP. |
|---|---|
| 設立 | 1947 |
| 資本金 | JPY 389,000,000 |
| 所在地 | 24-12, Sumiyoshi-cho, Kizuki, Nakahara-ku, Kawasaki-shi, Kanagawa-ken, 211-0021 Japan |
| URL | http://www.nidec-copal-electronics.com/ |
