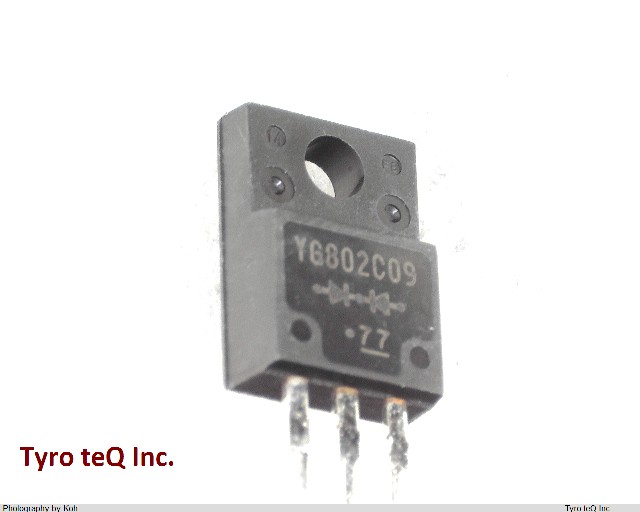

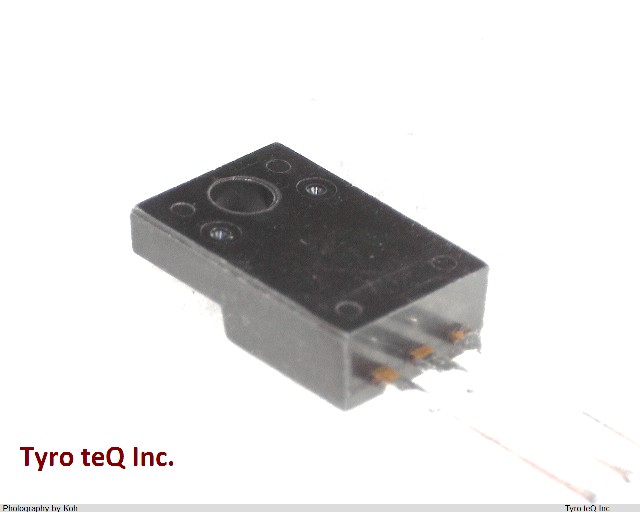

YG802C09R

Name: YG802C09R
Brand: FUJI ELE
SKU: 350000022-0000-0000-0000

YG802C09R - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

YG802C09R の詳細情報

型番	YG802C09R
メーカー	FUJI ELE
Additional Feature	HIGH RELIABILITY
Application	GENERAL PURPOSE
Case Connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	0.9 V
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Non-rep Pk Forward Current-Max	80 A
Number of Elements	2
Number of Phases	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	5 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	90 V
Sub Category	Rectifier Diodes
Surface Mount	NO
Technology	SCHOTTKY
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
