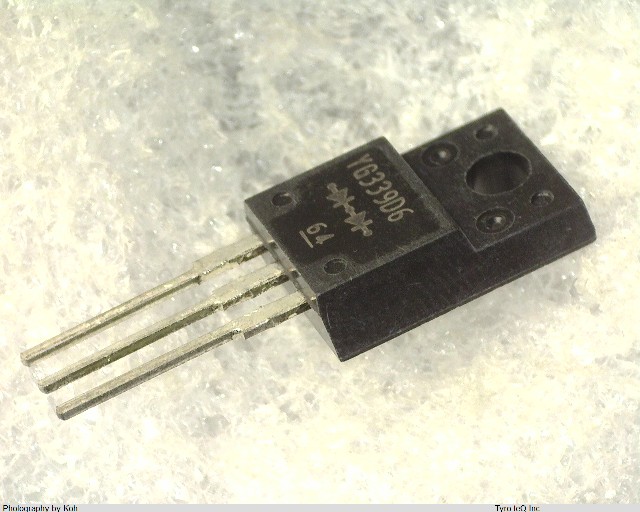

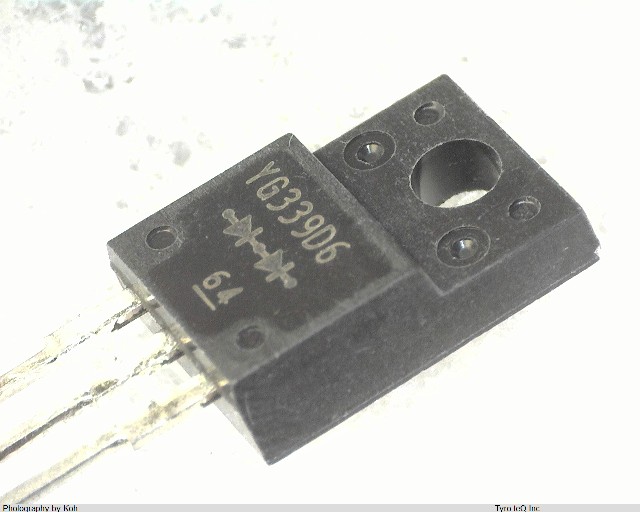

YG339D6

Name: YG339D6
Brand: FUJI ELE
SKU: 350030803-0000-0000-0000

YG339D6 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

YG339D6 の詳細情報

型番	YG339D6
メーカー	FUJI ELE
Additional Feature	HIGH RELIABILITY
Application	HIGH VOLTAGE FAST RECOVERY
Case Connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	2.5 V
JESD-30 Code	R-PSFM-T3
Non-rep Pk Forward Current-Max	20 A
Number of Elements	2
Number of Phases	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Output Current-Max	5 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	600 V
Reverse Recovery Time-Max	0.05 us
Sub Category	Rectifier Diodes
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
