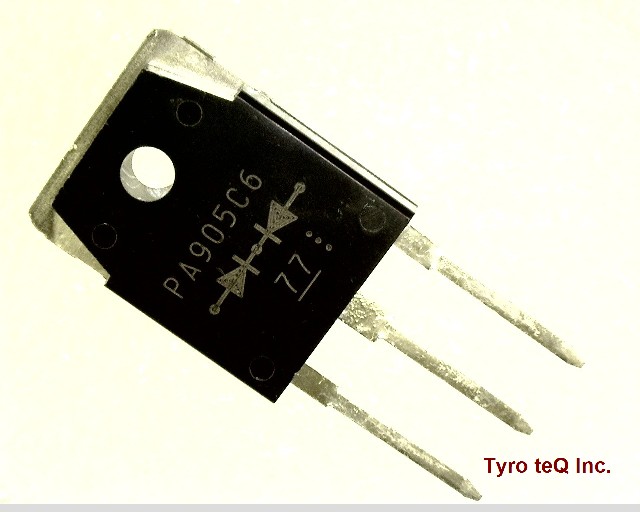

PA905C6

Name: PA905C6
Brand: FUJI ELE
SKU: 400068713-0000-0000-0000

PA905C6 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

PA905C6 の詳細情報

型番	PA905C6
メーカー	FUJI ELE
Additional Feature	HIGH RELIABILITY
Application	GENERAL PURPOSE
Case Connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
DLA Qualification	Not Qualified
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	1.7 V
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Non-rep Pk Forward Current-Max	80 A
Non-rep Pk Forward Current-Max (A)	100
Number of Elements	2
Number of Phases	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Operating Temperature-Max (Cel)	150
Operating Temperature-Min	-40 Cel
Output Current-Max	20 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	600 V
Rep Pk Reverse Voltage-Max (V)	600
Reverse Current-Max	500 uA
Reverse Recovery Time-Max	0.05 us
Reverse Recovery Time-Max (us)	0.05
Sub Category	Rectifier Diodes
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
