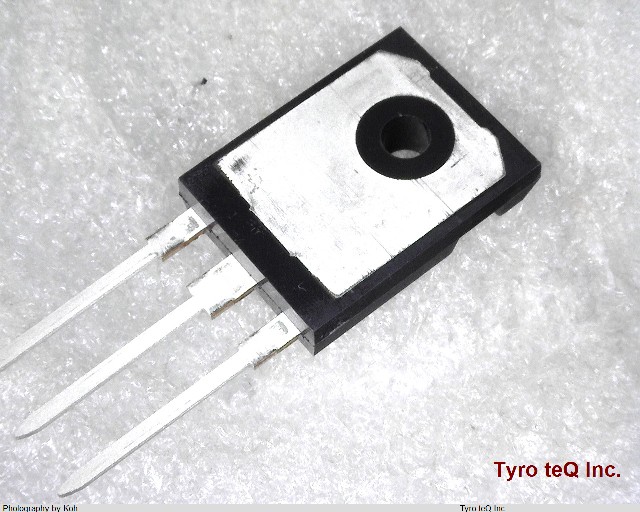

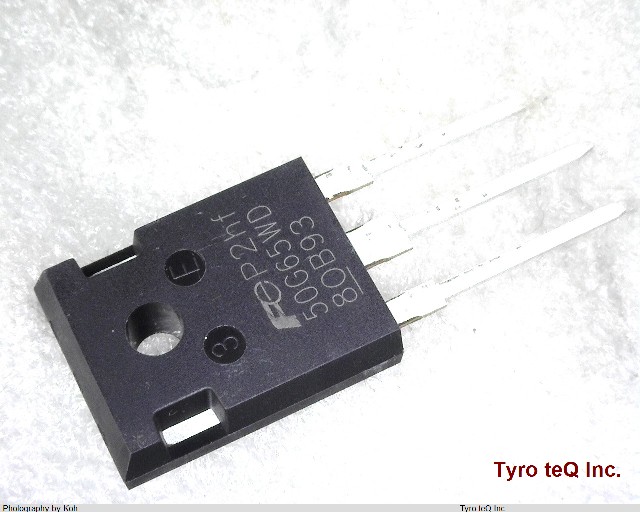

FGW50N65WD

Name: FGW50N65WD
Brand: FUJI ELE
SKU: 400060511-0000-0000-0000

FGW50N65WD - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

FGW50N65WD の詳細情報

型番	FGW50N65WD
メーカー	FUJI ELE
Additional Feature	HIGH RELIABILITY
Collector Current-Max (IC)	70 A
Collector-emitter Voltage-Max	650 V
Configuration	SINGLE WITH BUILT-IN DIODE
Fall Time-Max (tf)	90 ns
Gate-emitter Thr Voltage-Max	5 V
Gate-emitter Voltage-Max	20 V
JEDEC-95 Code	TO-247
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	190 W
Rise Time-Max (tr)	48 ns
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	450 ns
Turn-off Time-Nom (toff)	300 ns
Turn-on Time-Max (ton)	89 ns
Turn-on Time-Nom (ton)	59 ns
VCEsat-Max	2.2 V
