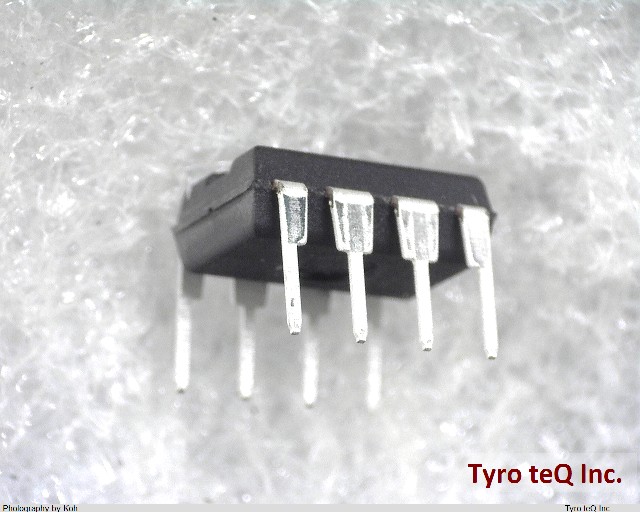

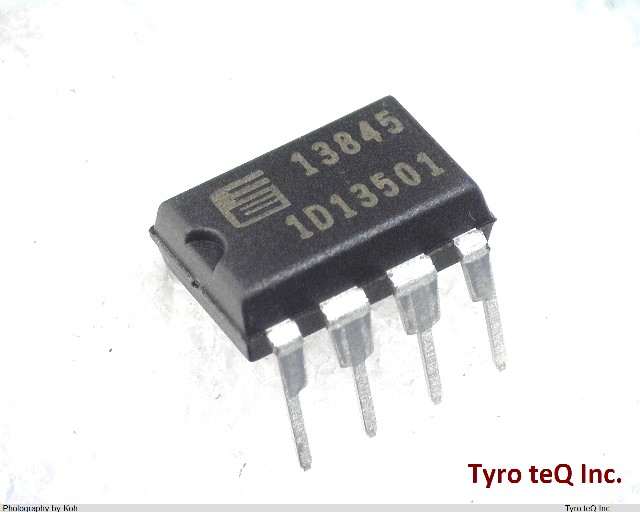

FA13845P

Name: FA13845P
Brand: FUJI ELE
SKU: 160150108-0000-0000-0000

FA13845P - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

FA13845P の詳細情報

型番	FA13845P
メーカー	FUJI ELE
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	25 V
Input Voltage-Min	10 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDIP-T8
Length	9.3 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	4.5 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	57 kHz
Technology	CMOS
Temperature Grade	OTHER
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
