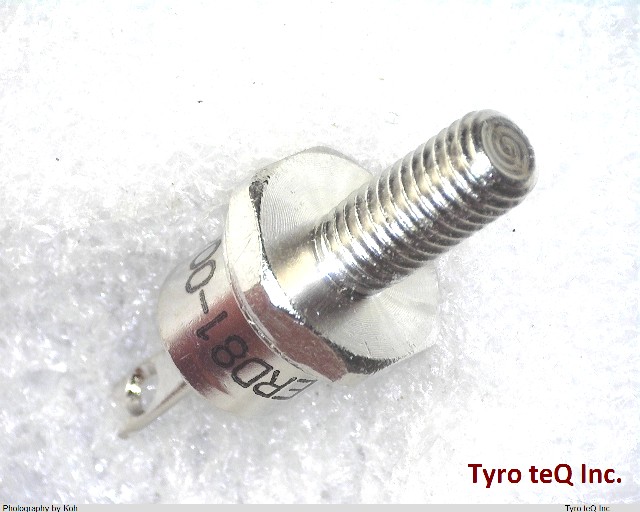

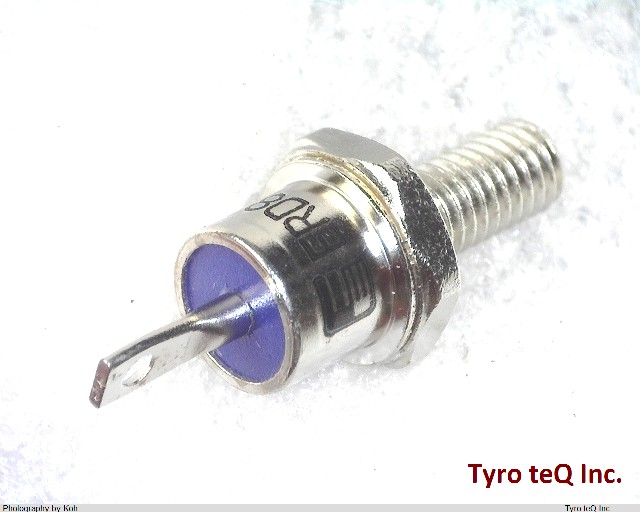

ERD81-004

Name: ERD81-004
Brand: FUJI ELE
SKU: 150076349-0000-0000-0000

ERD81-004 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

ERD81-004 の詳細情報

型番	ERD81-004
メーカー	FUJI ELE
Additional Feature	LEAKAGE CURRENT IS NOT AT 25 DEG C
Application	FAST RECOVERY
Case Connection	CATHODE
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	0.55 V
JESD-30 Code	O-MUPM-D1
Non-rep Pk Forward Current-Max	250 A
Number of Elements	1
Number of Phases	1
Number of Terminals	1
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	15 A
Package Body Material	METAL
Package Shape	ROUND
Package Style	POST/STUD MOUNT Meter
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	40 V
Reverse Current-Max	100000 uA
Sub Category	Rectifier Diodes
Surface Mount	NO
Technology	SCHOTTKY
Terminal Form	SOLDER LUG
Terminal Position	UPPER
