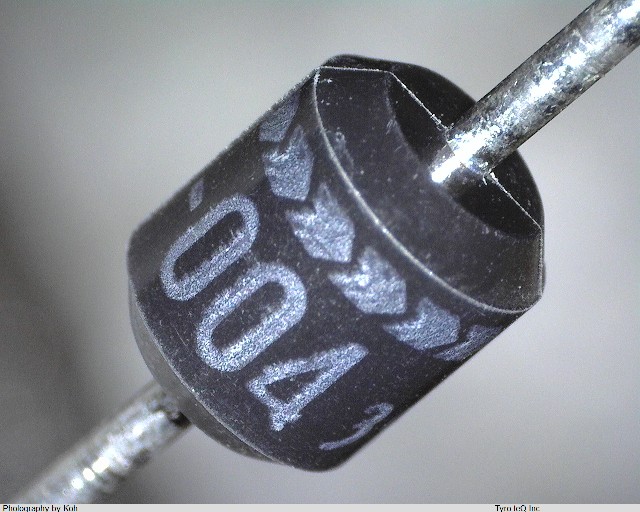

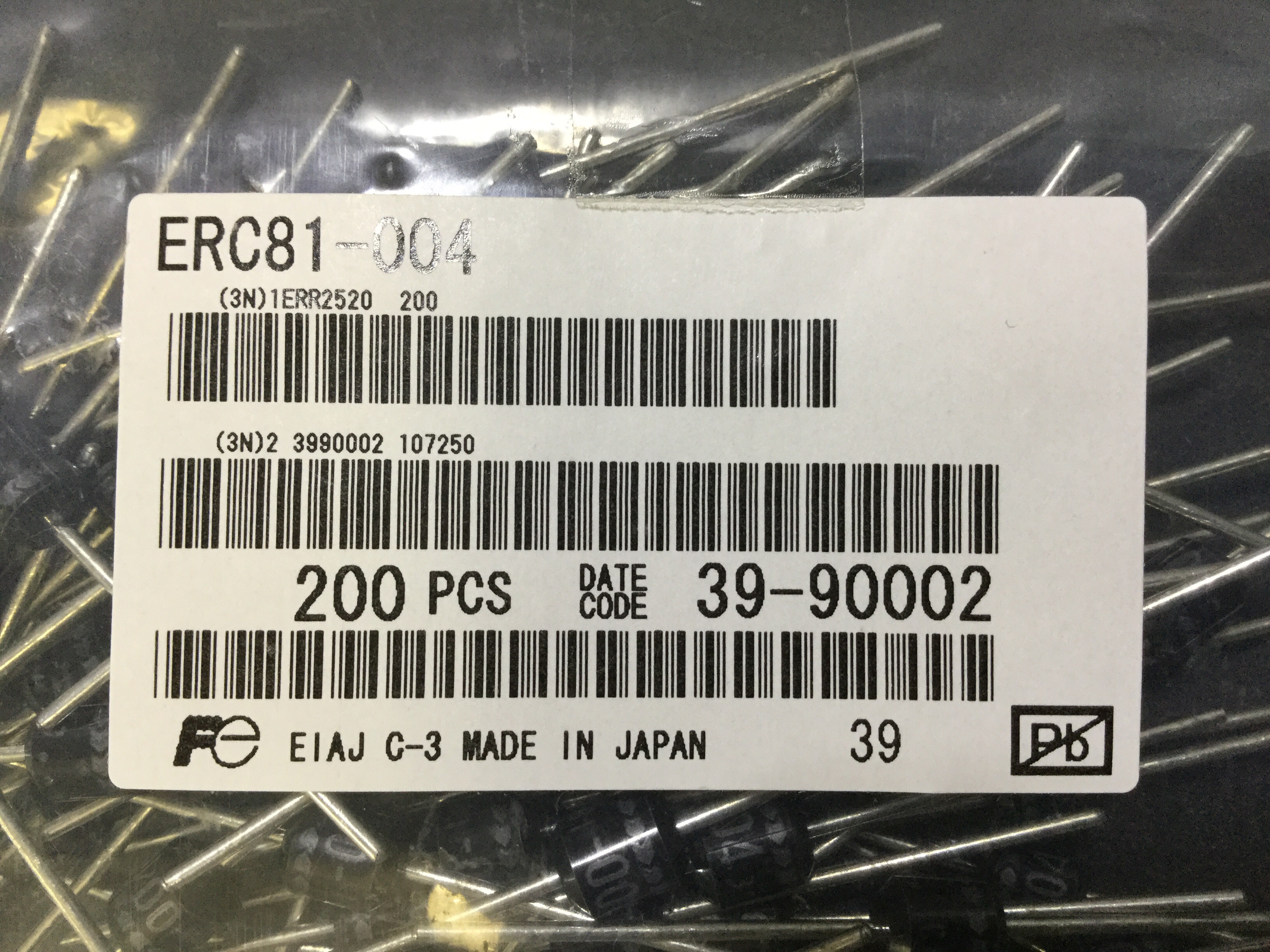

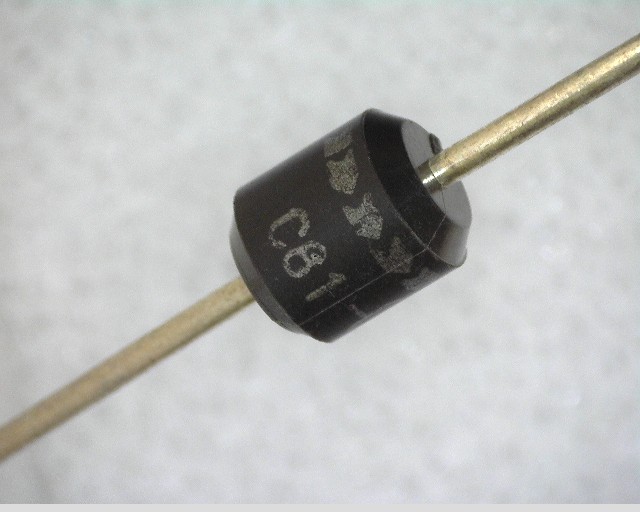

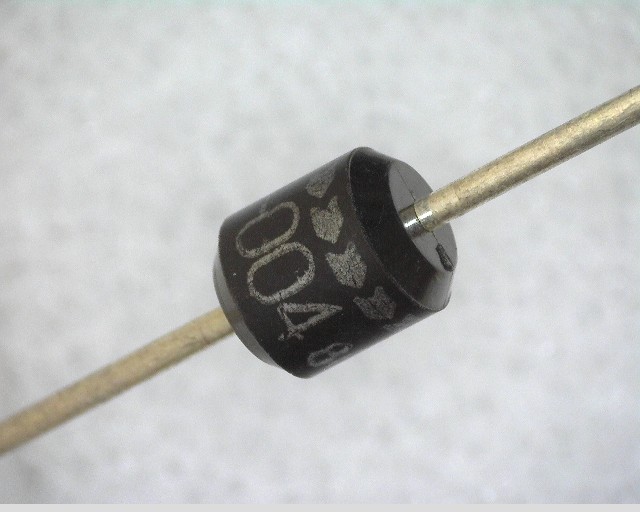

ERC81-004

Name: ERC81-004
Brand: FUJI ELE
SKU: 150002144-0000-0000-0000

ERC81-004 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

ERC81-004 の詳細情報

型番	ERC81-004
メーカー	FUJI ELE
Additional Feature	HIGH RELIABILITY
Application	EFFICIENCY
Case Connection	ISOLATED
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	0.55 V
JEDEC-95 Code	DO-201AD
JESD-30 Code	O-LALF-W2
Non-rep Pk Forward Current-Max	120 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	2.6 A
Package Body Material	GLASS
Package Shape	ROUND
Package Style	LONG FORM Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Reference Standard	TS 16949
Rep Pk Reverse Voltage-Max	40 V
Reverse Current-Max	5000 uA
Sub Category	Rectifier Diodes
Surface Mount	NO
Technology	SCHOTTKY
Terminal Form	WIRE
Terminal Position	AXIAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
