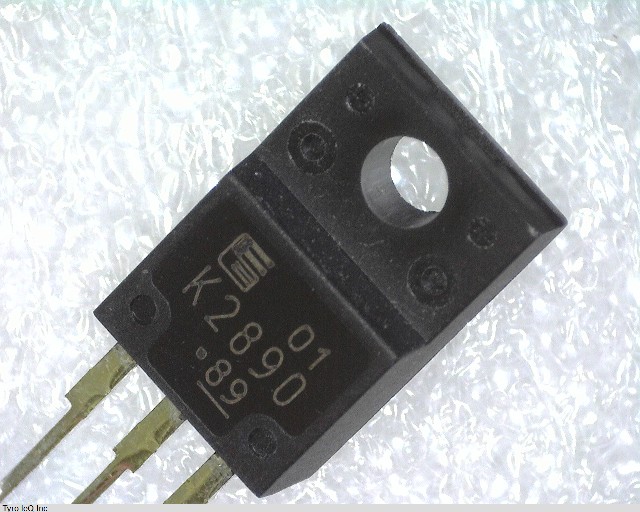

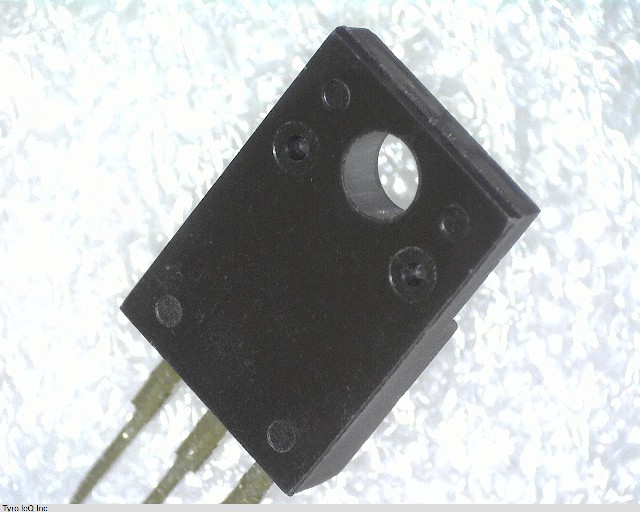

2SK2890-01MR

Name: 2SK2890-01MR
Brand: FUJI ELE
SKU: 30144755-0000-0000-0000

2SK2890-01MR - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

Nチャネル電界効果型トランジスタ

2SK2890-01MR の詳細情報

型番	2SK2890-01MR
メーカー	FUJI ELE
種別	Nチャネルトランジスタ
Additional Feature	ULTRA-LOW RESISTANCE
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	30 V
Drain Current-Max (ID)	50 A
Drain-source On Resistance-Max	0.0068 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Pulsed Drain Current-Max (IDM)	200 A
Qualification Status	Not Qualified
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
