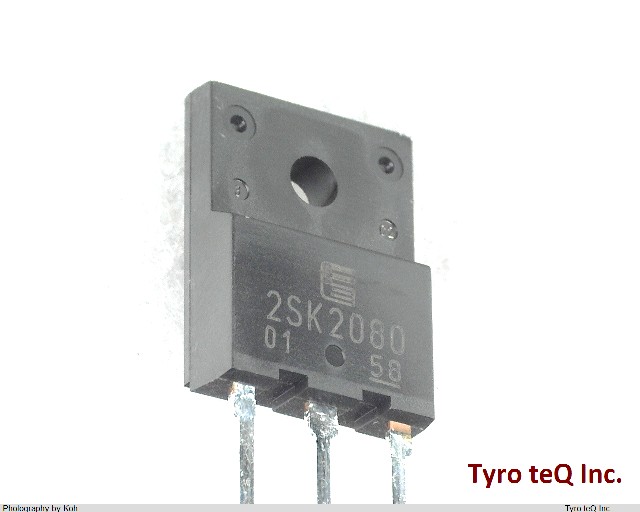

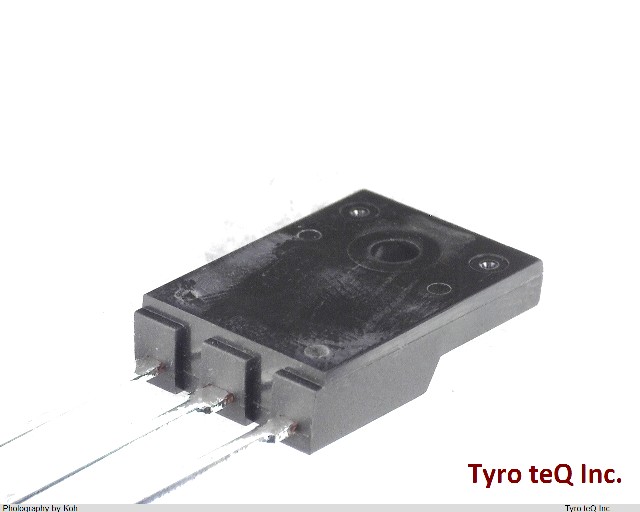

2SK2080-01R

Name: 2SK2080-01R
Brand: FUJI ELE
SKU: 30263158-0000-0000-0000

2SK2080-01R - FUJI ELE の商品詳細ページです。
Nチャネル電界効果型トランジスタ

228時間40分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

2SK2080-01R の詳細情報

型番	2SK2080-01R
メーカー	FUJI ELE
種別	Nチャネルトランジスタ
Additional Feature	AVALANCHE RATED
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	500 V
Drain Current-Max (Abs) (ID)	15 A
Drain Current-Max (ID)	15 A
Drain-source On Resistance-Max	0.55 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	80 W
Power Dissipation-Max (Abs)	80 W
Pulsed Drain Current-Max (IDM)	40 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	500 ns
Turn-on Time-Max (ton)	260 ns
