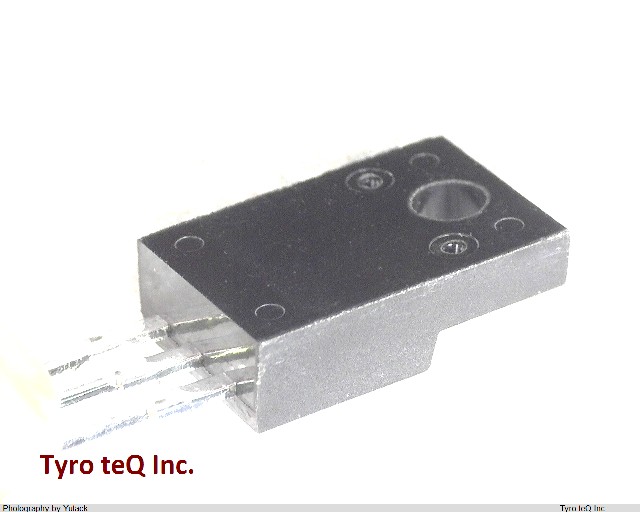

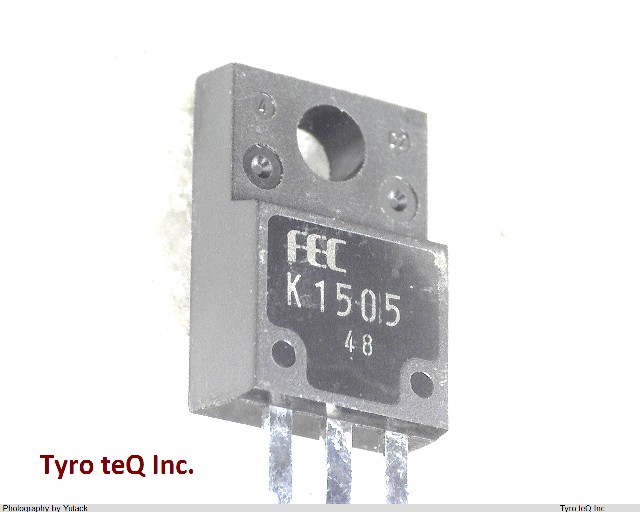

2SK1505-MR

Name: 2SK1505-MR
Brand: FUJI ELE
SKU: 30116817-0000-0000-0000

2SK1505-MR - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

Nチャネル電界効果型トランジスタ

2SK1505-MR の詳細情報

型番	2SK1505-MR
メーカー	FUJI ELE
種別	Nチャネルトランジスタ
Additional Feature	LOGIC LEVEL COMPATIBLE
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	30 V
Drain Current-Max (Abs) (ID)	35 A
Drain Current-Max (ID)	35 A
Drain-source On Resistance-Max	0.037 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	40 W
Power Dissipation-Max (Abs)	40 W
Pulsed Drain Current-Max (IDM)	140 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	720 ns
Turn-on Time-Max (ton)	188 ns
