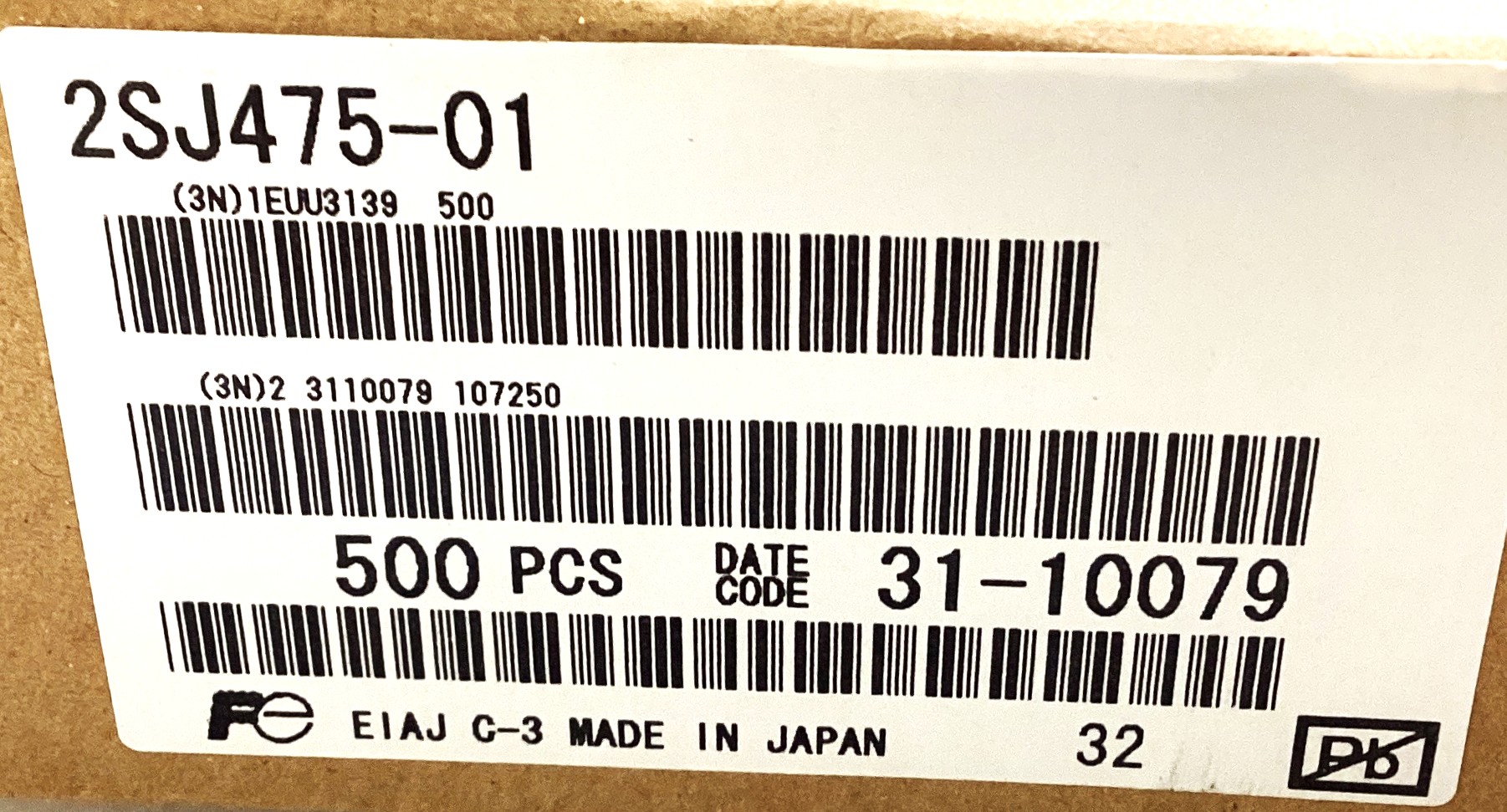

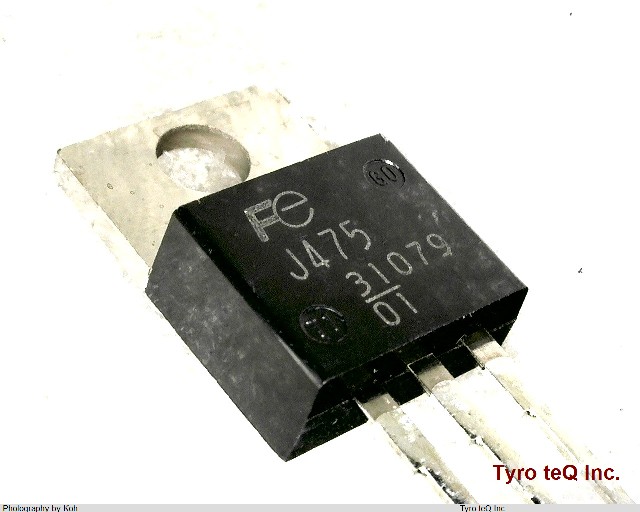

2SJ475-01

Name: 2SJ475-01
Brand: FUJI ELE
SKU: 30258155-0000-0000-0000

2SJ475-01 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

Pチャネル電界効果型トランジスタ

2SJ475-01 の詳細情報

型番	2SJ475-01
メーカー	FUJI ELE
種別	Pチャネルトランジスタ
Additional Feature	AVALANCHE RATED
Avalanche Energy Rating (Eas)	325.9 mJ
Configuration	SINGLE
DS Breakdown Voltage-Min	60 V
Drain Current-Max (Abs) (ID)	25 A
Drain Current-Max (ID)	25 A
Drain-source On Resistance-Max	0.11 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	50 W
Power Dissipation-Max (Abs)	50 W
Pulsed Drain Current-Max (IDM)	100 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	430 ns
Turn-on Time-Max (ton)	145 ns
